TJ1530 Single Axis and Two Blades CNC Wood Lathe

Application:

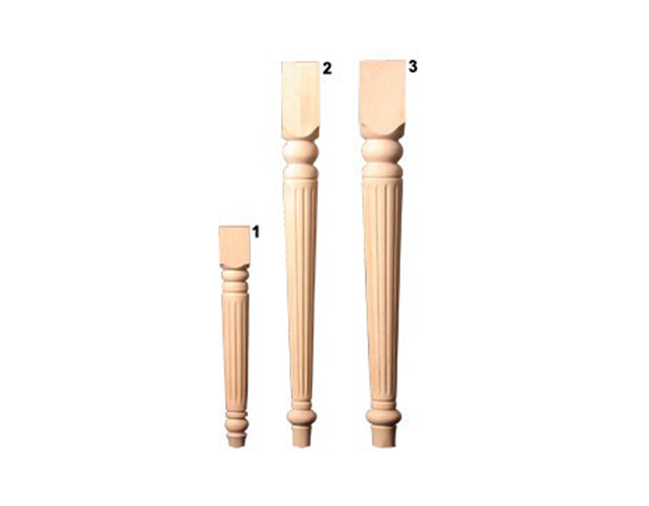

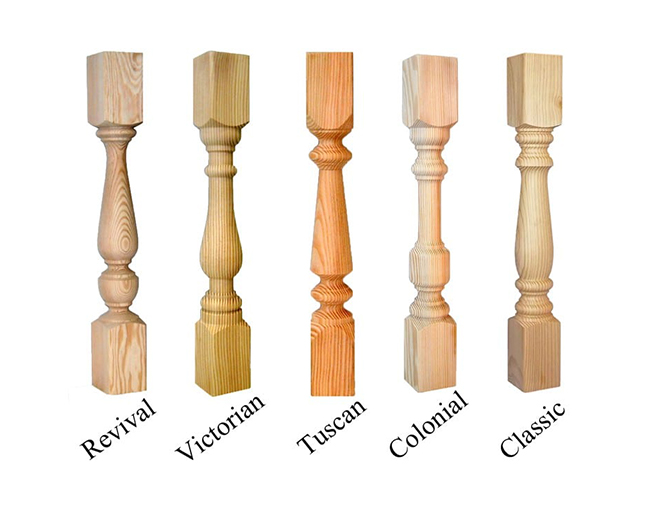

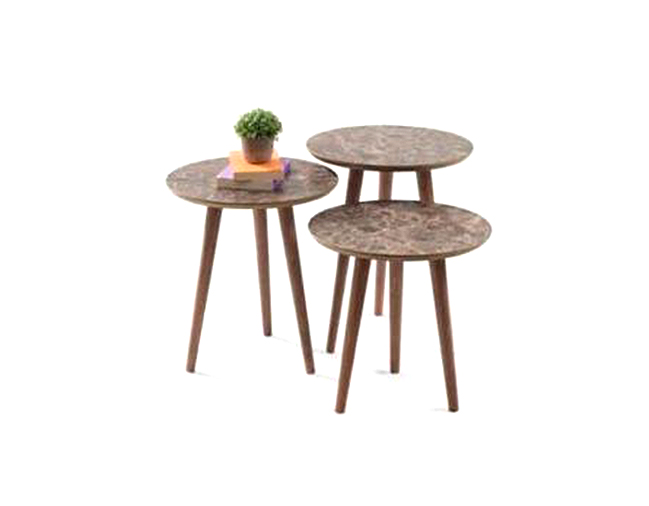

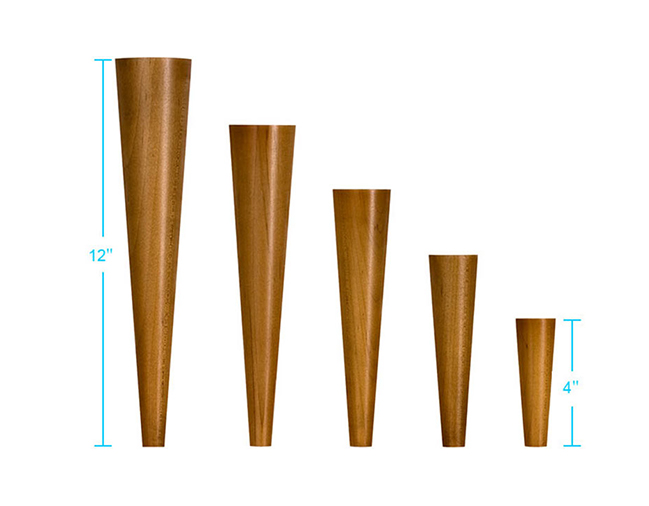

All kinds of wooden staircases,stairway balusters,stairway newel posts;dining table legs;end table

Legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails, lamp posts,baseball bats and soon


Basis Parameters:

1. Working Voltage:380V,AC50/60hz,3 phase

2. working size:max 300mm diameter,max 1500mm length

3. Single Axis and Double Blades

4. Heavy Duty Square steel tube frame lathe bed

5. Y axisRack&pinion transmission ensures fast speed and high accuracy

6. X,Z axis with German high precision Ball screw

7. High Precision Taiwan Hiwin 20mm Square Rail with X,Y,Z axis

8. Steppermotor and YAKO 2811 driver

9. ARTCAM software

10. RichAuto A132 DSP Handheld control system with USB offline function

11. Oil-water separator

12. Lubrication system for X,Y,Z axes

13. 2pcs woodworking knife in total

14. Whole suit of maintenance tools


technical parameters:


         Item                      Specification

    Max processing length

      1500mm(can custom 2000/2500/3000mm)

    Max turning diameter

      300mm

    Air pressure

      0.6-0.8Mpa

    Powersupply

      AC   380V 3 phase 50HZ/60HZ(can custom 220V)

    Max feed rate

      200cm/min

    min setting unit

      0.01cm

    Transimission type

      ballscrew for X Z axis,gear for Y axis

    Guider

      Taiwan Hiwin orbit

    Main shaft rotating speed

      0-3000r/min

    Motor power

      4kw

    Cutter material

      Super hard alloy

    Control System

      DSP   control system

    Motor

      stepper motor

    Driver

      Yako driver

    Inverter

      Best inverter

    Drawing Software

      AutoCAD

    Hand controller recognise file

      *.dxf

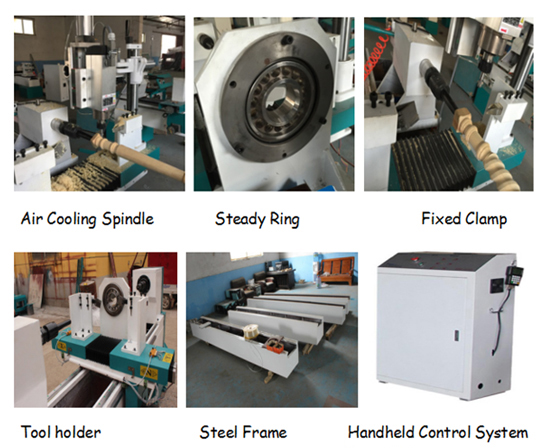

Machine Accessories:
