Application:

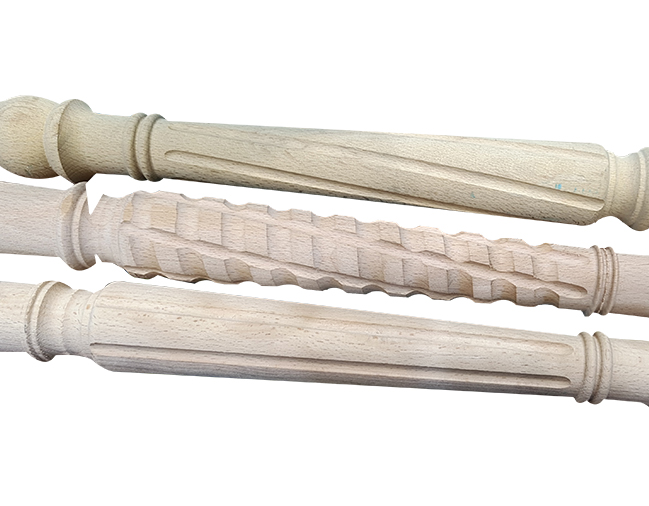

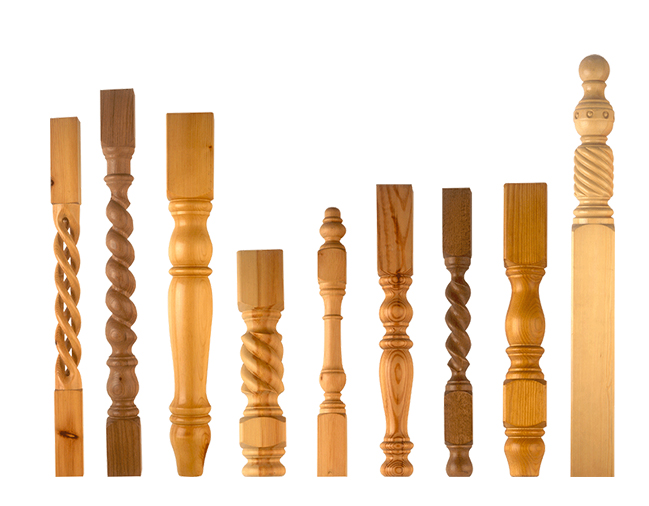

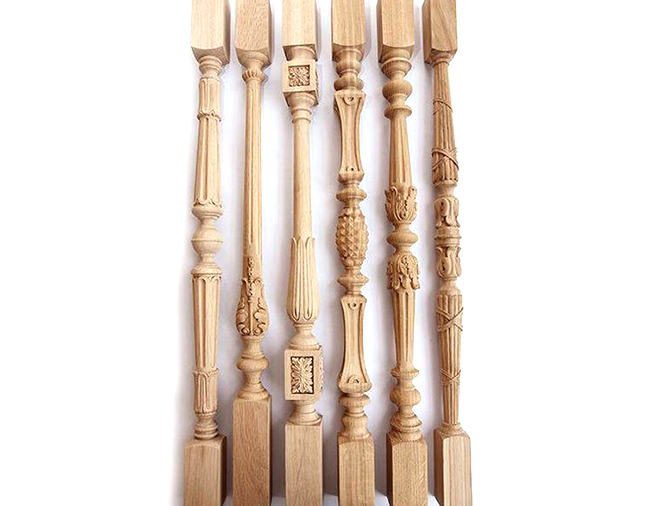

All kinds of wooden staircases,stairway balusters,stairway newel posts;dining table legs;end table

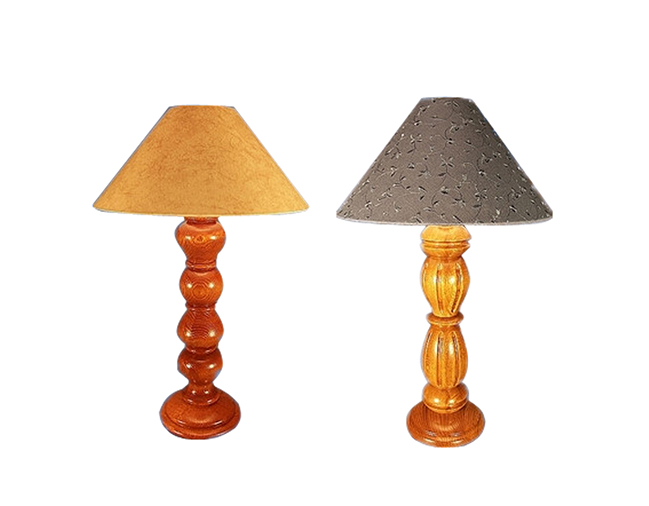

Legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails, lamp posts,baseball bats and soon

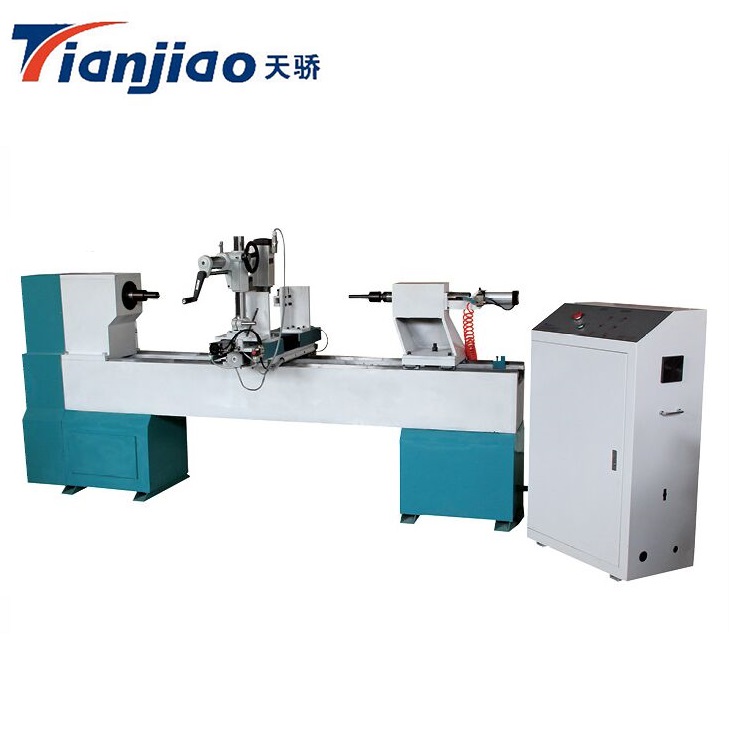

Basis Parameter：
1. Working Voltage:380V,AC50/60hz,3 phase
2. Working size:max 300mm diameter,max 1500mm length
3. Heavy Duty Square steel tube frame lathe bed 4. .3.5kw air Cooling Spindle
5. Y axis Rack&pinion transmission ensures fast speed and high accuracy
6. X,Z axis with German high precision Ball screw
7. High Precision Taiwan Hiwin 25mm Square Rail
8. Servo motor and Yako 2811 driver
9. AutoCAD software
10. RichAuto A132 DSP Handheld control system with USB offline function
11. Oil-water separator
12. Lubrication system for X,Y,Z axes
13. 2pcs woodworking knife
14. Whole suit of maintenance tools
Technical Data:
Item Specification | |
Max processing length | 1500mm(can custom 2000/2500/3000mm) |
Max turning diameter | 300mm |
Air pressure | 0.6-0.8Mpa |
Powersupply | AC 380V 3 phase 50HZ/60HZ（can custom 220V） |
Max feed rate | 200cm/min |
min setting unit | 0.01cm |
Transimission type | ballscrew for X Z axis,gear for Y axis |
Guider | Taiwan Hiwin orbit |
Main shaft rotating speed | 0-3000r/min |
Motor power | 4kw |
Cutter material | Super hard alloy |
Control System | DSP control system |
Motor | servo motor |
Driver | Yako driver |
Inverter | Best inverter |
Drawing Software | AutoCAD |
Hand controller recognise file | *.dxf |
Packing list | 3100*1200*1680mm |

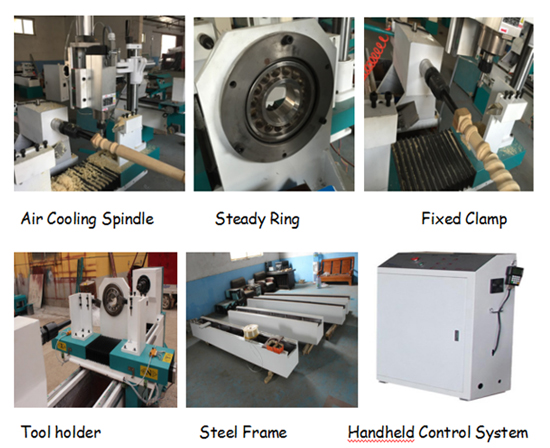

Machine Accessories:
