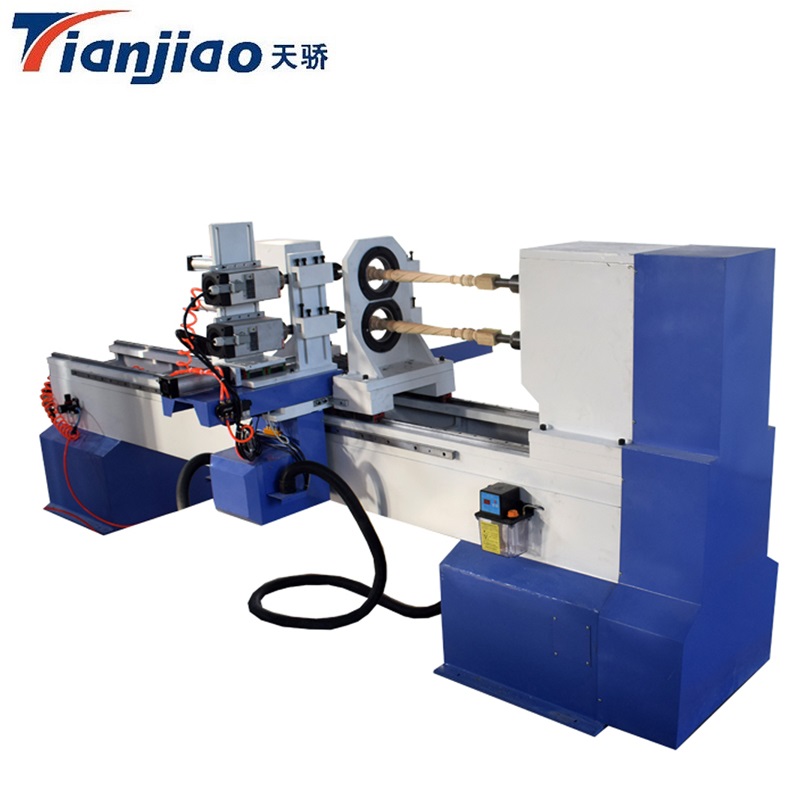

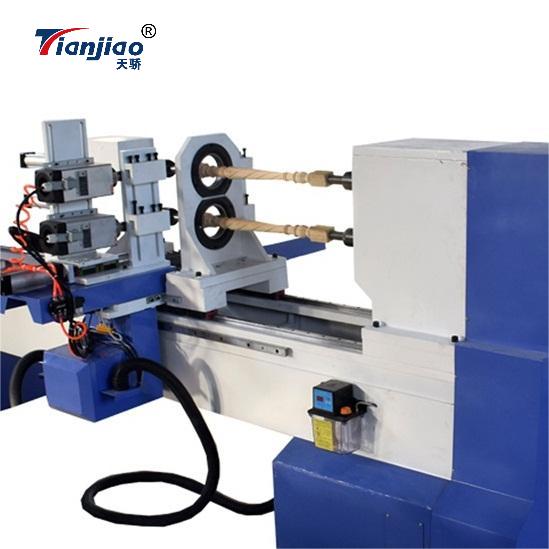

TJ1516s Two Spindles CNC Wood Lathe with turning and engraving and fluting for cylindrical work-piece.

Application:

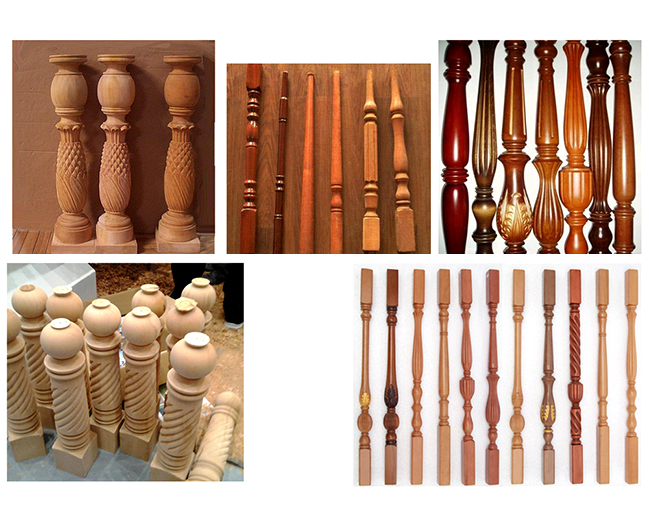

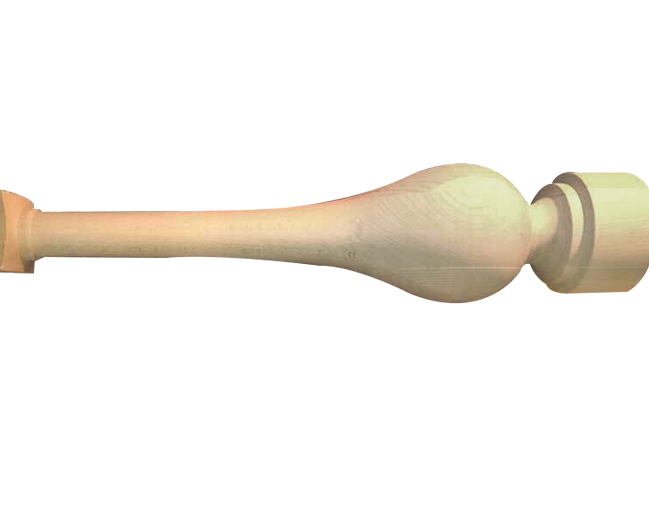

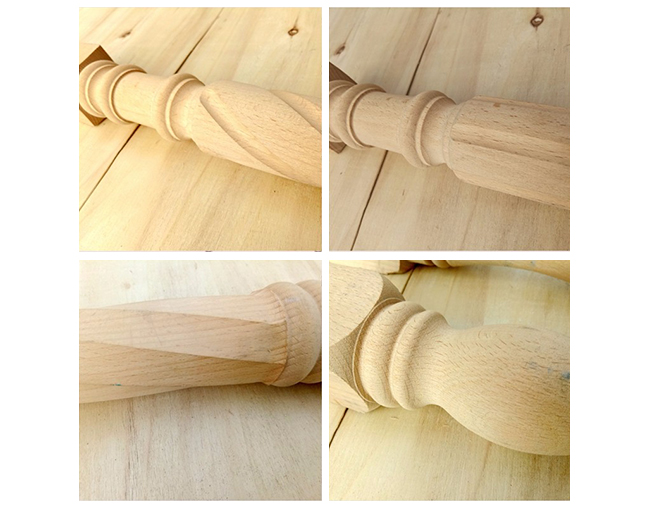

Various cylindrical workpiece, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, etc


Main configuration:

1.Working Voltage:380V,AC50/60hz,3 phase

2.working size:max 160mm diameter,max 1500mm length

3.Double axes and two Blades

4.Heavy Duty Square steel tube frame lathe bed

5.Y axisRack&pinion transmission ensures fast speed and high accuracy

6.X,Z axis with German high precision Ball screw

7.High Precision Taiwan Hiwin 20mm Square Rail with X,Y,Z axis

8.YAKO 2811 driver

9. 4.0kw Servo motor air Cooling Spindle with universal wheel to change direction

10.AutoCAD software

11.RichAuto A132 DSP Handheld control system with USB offline function

12.Oil-water separator

13.Lubrication system for X,Y,Z axes

14.4pcs ofworking tools

15.Whole suit of maintenance tools

16.Auto loading support for working materials(optional only, extra 1500USD will be added if you need)


Main Parts:
