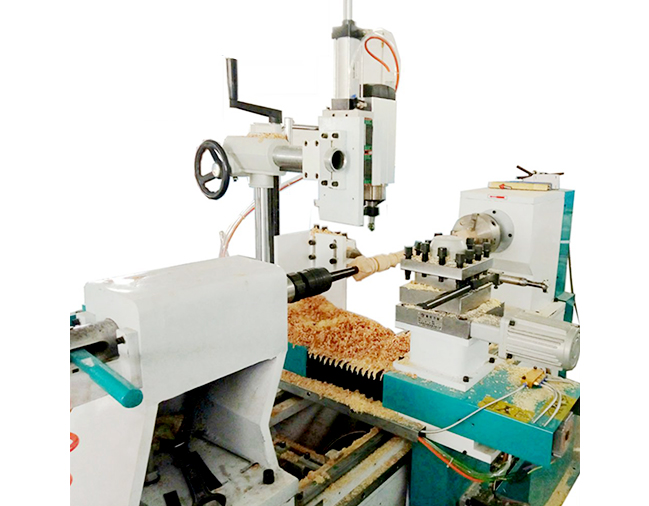

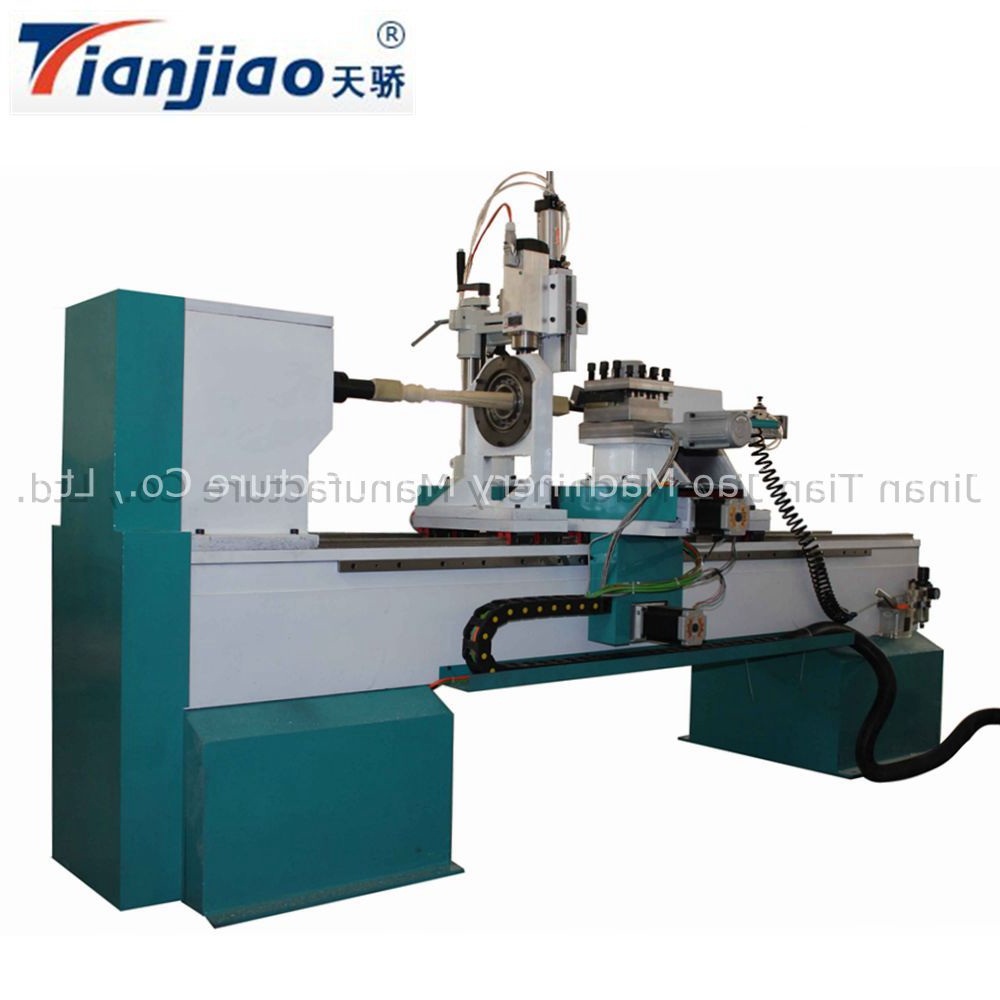

TJ1530A One Axis Two BladesCNC Wood Lathe with ATC system

Application:

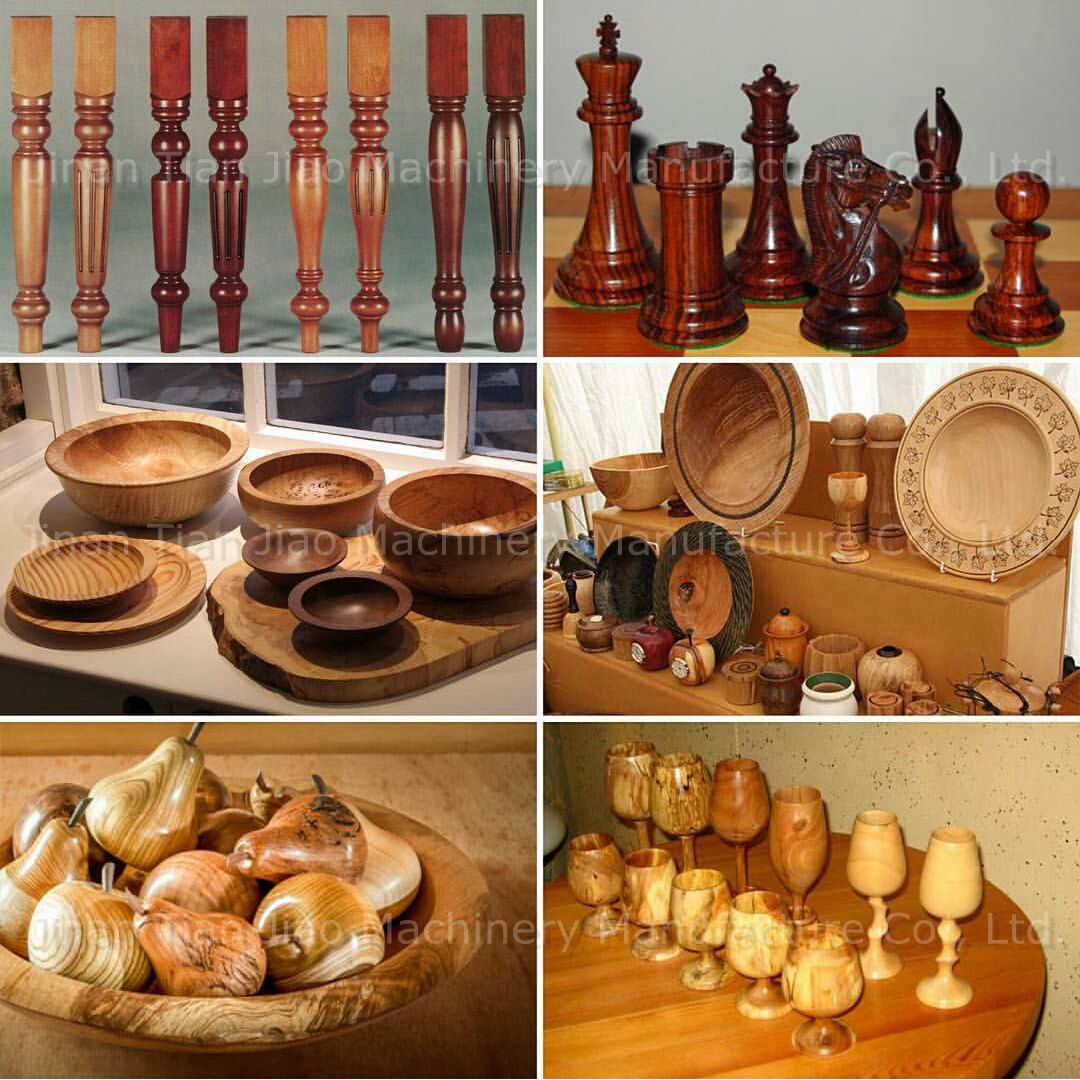

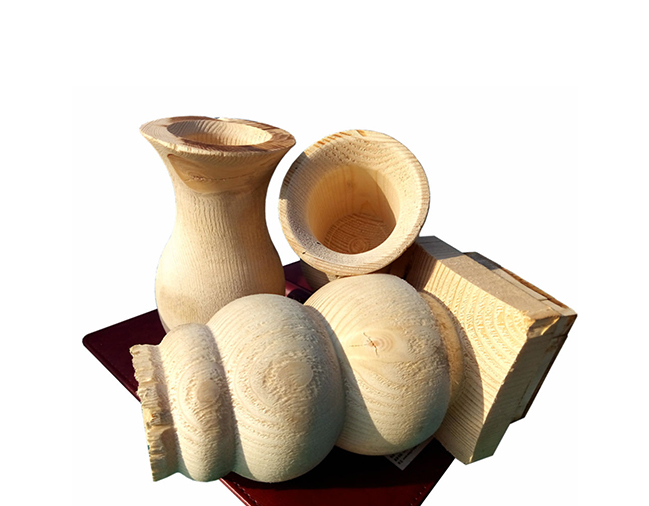

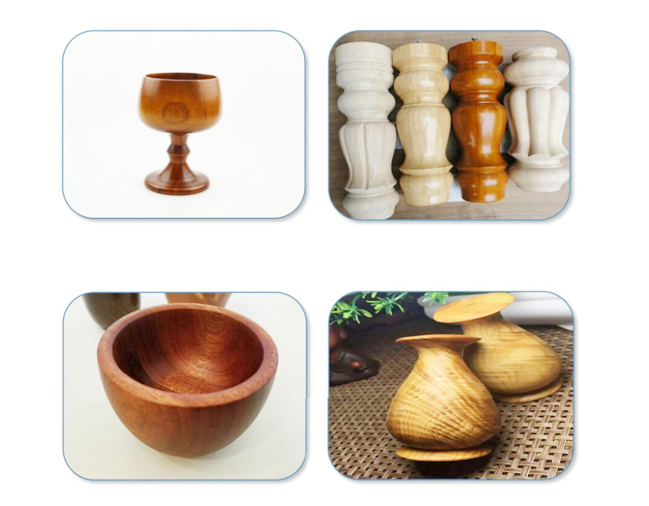

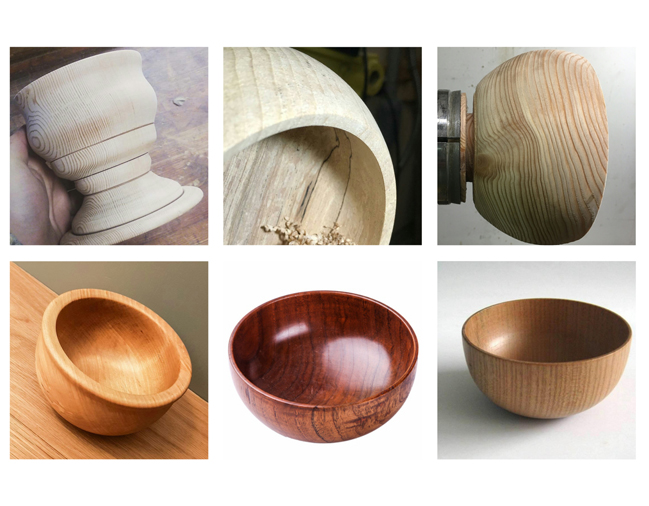

Wood furniture industry: Wood baluster, staircase handrail, table legs, sofa legs, bed legs, baseball bat, Billiard pole, wooden handle, Rolling pin, wood rod, wood crutch, wooden bowel making, wooden vase, wooden pen bottle.




Main configuration:

1. Working Voltage:380V,AC50/60hz,3 phase

2. Working size for turning lathe: max 300mm diameter,max 1500mm length

3. Working size for electric knives system: diameters 80-300mm. Length 30-200mm.

4. Heavy Duty Square steel tube frame lathe bed

5. Spindle motor: 4kw asynchronous motor

6. Driver Motor :450B 450C Stepper Motor

7. Lead Screw TPI 2510(X Z)

8. Oil-water separator

9. Lubrication system for X,Y,Z axes

10. RichAuto A132 DSP Handheld control system with USB offline function

11. Electric knives auto change system

12. X,Z axis with German high precision Ball screw

13. High Precision Taiwan Hiwin 25mm Square Rail

14. AutoCAD software

19. Y axis Rack&pinion transmission ensures fast speed and high accuracy

20. One 160mm chuck(optional only with 150usd added )

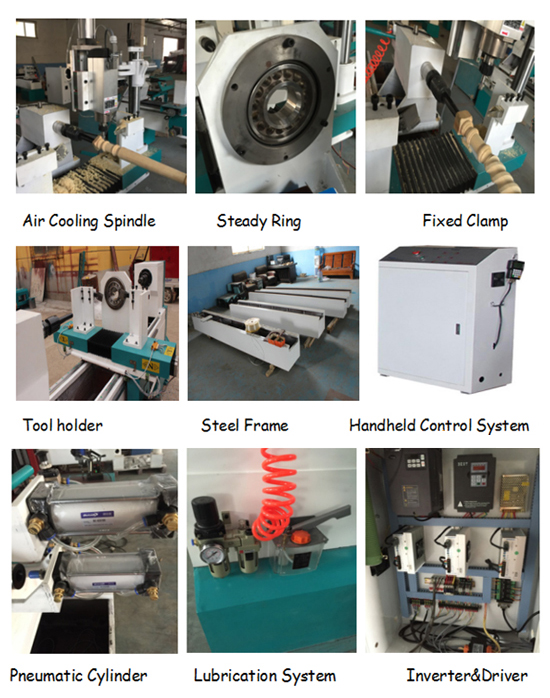

Machine Accessories:
