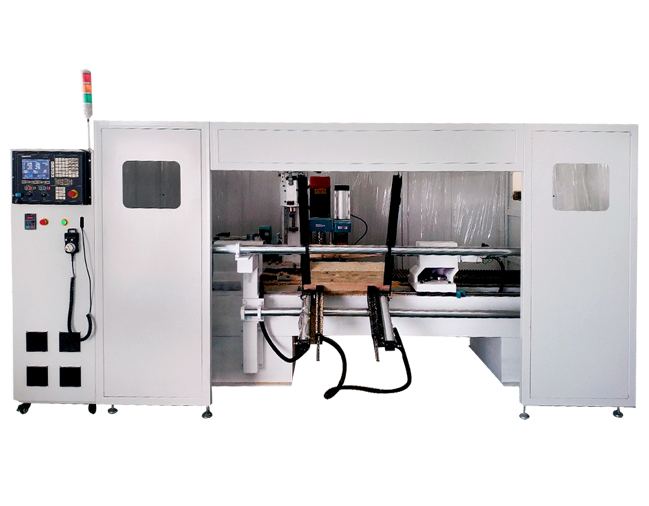

TJ-1220 Turning and Milling Composite Center

Patent No.201720312588.3

(Band Saw,turning,Twisting,Milling,Grooving,Hollow,Engraving,sanding multi-function in one)


Application:

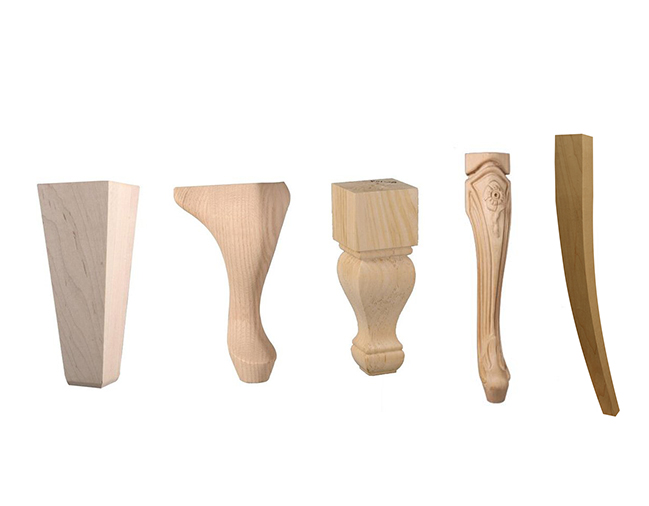

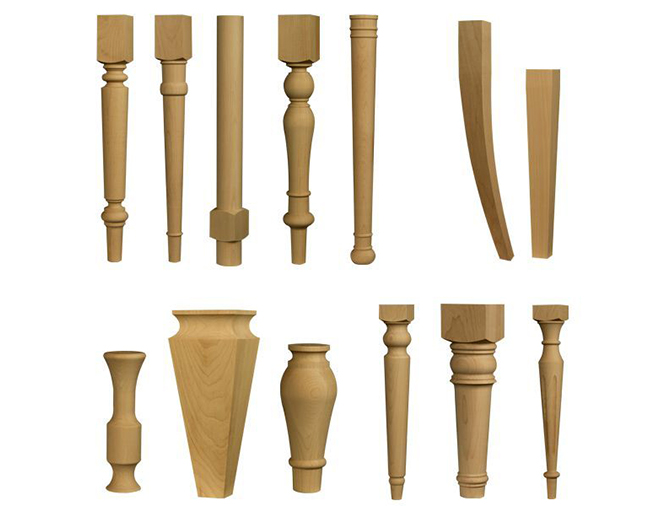

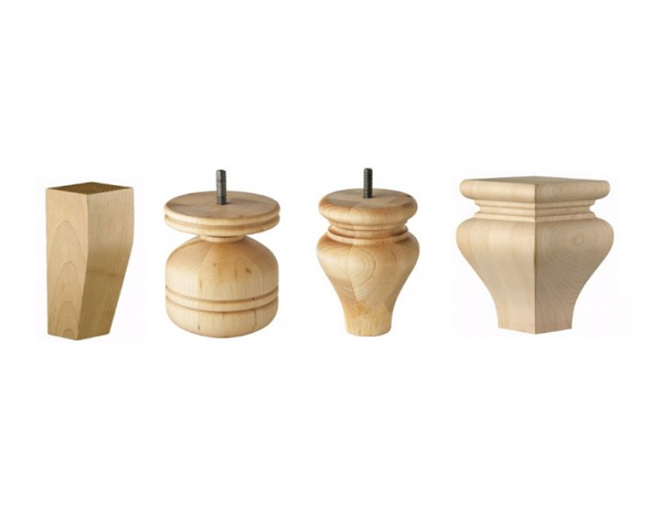

Regular and irregular staircases,stairway balusters,stairway newel posts;dining table legs;end tableLegs;sofa table legs;

bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails, lamp posts,baseball bats and so on.


Parameters:

1. Working Voltage:380V,AC50/60hz,3 phase

2. working size:max 200mm diameter,max 1200mm length

3. Heavy Duty Square steel tube frame lathe bed

4. Whole cover for the machine to prevent dust and has separate space

5. high precision Ball screw transmission

6. High Precision Taiwan Hiwin 25mm Square Rail with X,Y,Z axis

7. X,Y axis with Japan YASKAWA 1.5KW Servo motor and Z axis with 800W servo motor

8. 2 sets 3kw 3-phase asynchronous motor,one for Saw and one for Polishing motor

9. Tianjiao Professional Control system with LCD Control panel and hand wheel

10. Lubrication system for X,Y,Z axes

11. 4.5KW Air cooling spindle with 5.5kw Servo motor

12. One set Planer for planning and milling

13. One set band saw

14. One pc turning blade

15. One set sand device for auto sanding

16. One suit ofworking tools

17. Whole suit of maintenance tools

18. professional 4 axis software for engraving,milling,sanding etc

19. Germany Schneider converter


Main Parts:




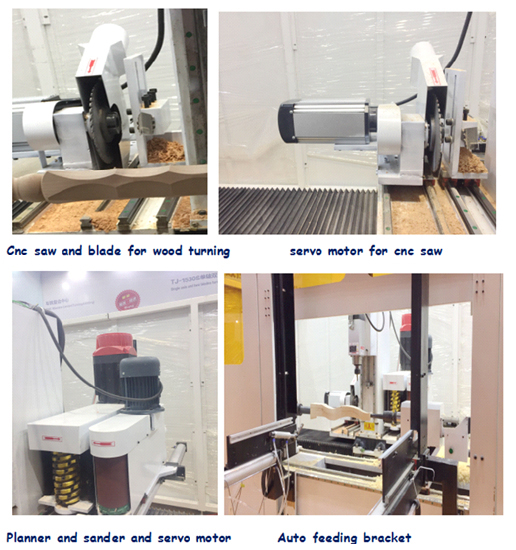

Technical date:


           Item                        Specification

    Max   processing length

    1200mm(can custom longer size)

    Max turning     diameter

    200mm

    Air Pressure

    8-10MPa

    Powersupply

    AC 380V 3 phase 50HZ/60HZ(can custom   220V)

    Max feed   rate

    200cm/min

    min setting     unit

    0.01cm

    Transimission     type

    ballscrew for X,Y,Z axis

    Guider

    Taiwan Hiwin orbit

    Main shaft     rotating speed

    0-3000r/min

    Motor power

    5.5kw

    Control   System

    Tianjiao CNC control system

    Motor

    Japan Servo motor

    Driver

    Servo driver

    Inverter

    Fuling inverter

    Drawing     Software

    AutoCAD for turning and professional 4   axis   software

    Hand   controller   recognise file

    *.dxf
