Application:

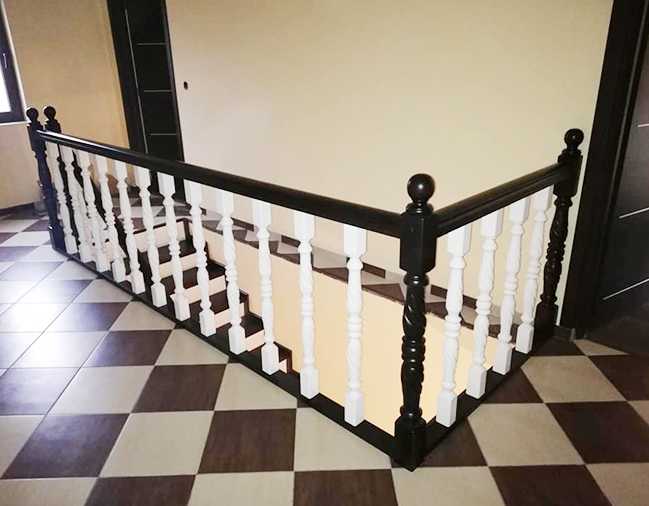

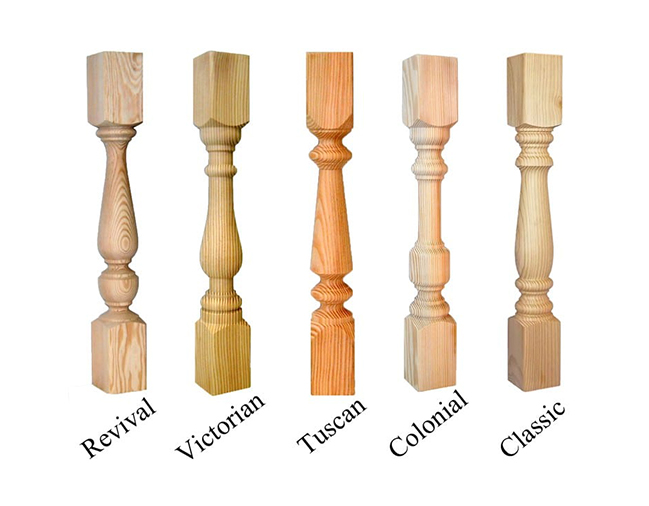

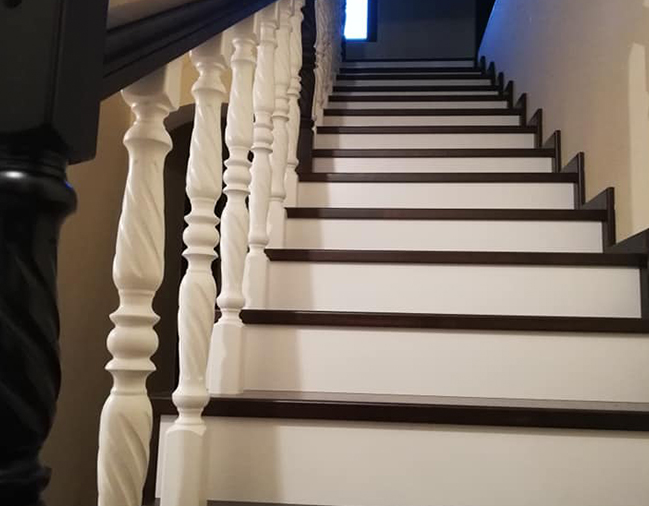

Staircases,stairway balusters,stairway newel posts;dining table legs;end tableLegs;sofa table legs;
bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails, lamp posts,baseball bats and soon
Basis Parameters：
1. Working Voltage:380V,AC50/60hz,3 phase
2. working size:max 160mm diameter,max 1500mm length
3. Double axes and four Blades
4. Heavy Duty Square cast iron lathe bed
5. Y axisRack&pinion transmission ensures fast speed and high accuracy
6. X,Z axis with German high precision Ball screw
7. High Precision Taiwan Hiwin 20mm Square Rail with X,Y,Z axis
8. 450B stepper motor and YAKO 2811 driver
9. AutoCAD software
10. RichAuto A132 DSP Handheld control system with USB offline function
11. Oil-water separator
12. Lubrication system for X,Y,Z axes
13. 4pcs ofworking tools
14. Whole suit of maintenance tools

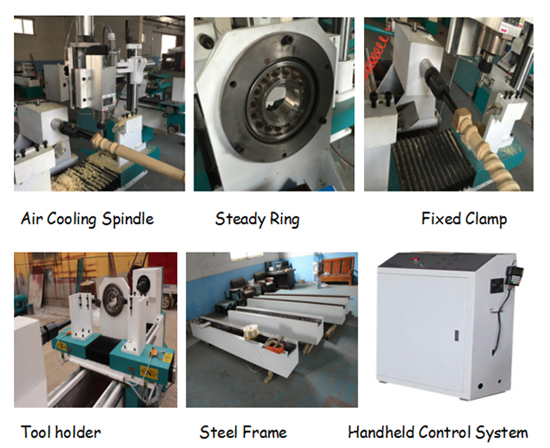

Machine Accessories:
Technical Data:
Item Specification | |
Max processing length | 1500mm(can custom 2000/2500/3000mm) |
Max turning diameter | 160mm |
Air pressure | 0.6-0.8Mpa |
Powersupply | AC 380V 3 phase 50HZ/60HZ（can custom 220V） |
Max feed rate | 200cm/min |
min setting unit | 0.01cm |
Transimission type | ballscrew for X Z axis,gear for Y axis |
Guider | Taiwan Hiwin orbit |
Main shaft rotating speed | 0-3000r/min |
Motor power | 4kw |
Cutter material | Super hard alloy |
Control System | DSP control system |
Motor | servo motor |
Driver | Yako driver |
Inverter | Best inverter |
Drawing Software | AutoCAD |
Hand controller recognise file | *.dxf |
Packing size | 3100*1200*1680mm |
