Application:
wooden staircase handrail, table legs, sofa legs, bed legs, chair legs, baseball bat, billiard cues, poles, rolling pin, wooden brush handle,wooden columns, Pacilion spireetc.
Main configuration:
1. Working Voltage:380V,AC50/60hz,3 phase
2. Working size:max 160mm diameter,max 1500mm length
3. Double axes and two Blades
4. Heavy Duty Square steel tube frame lathe bed
5. Y axisRack&pinion transmission ensures fast speed and high accuracy
6. X,Z axis with German high precision Ball screw
7. High Precision Taiwan Hiwin 20mm Square Rail with X,Y,Z axis
8. YAKO 2811 driver
9. 4.0kw Servo motor air Cooling Spindle with universal wheel to change direction
10. AutoCAD software
11. RichAuto A132 DSP Handheld control system with USB offline function
12. Oil-water separator
13. Lubrication system for X,Y,Z axes
14. 4pcs ofworking tools
15. Whole suit of maintenance tools
16. Auto loading support for working materials

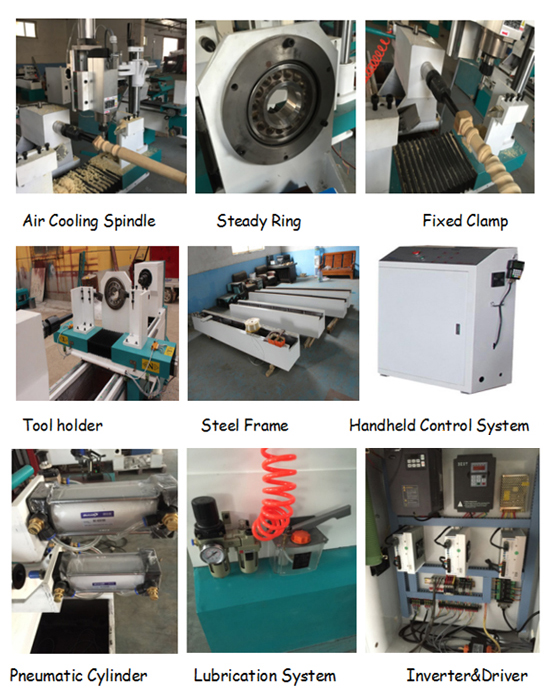

Machine Accessories:
