Application:

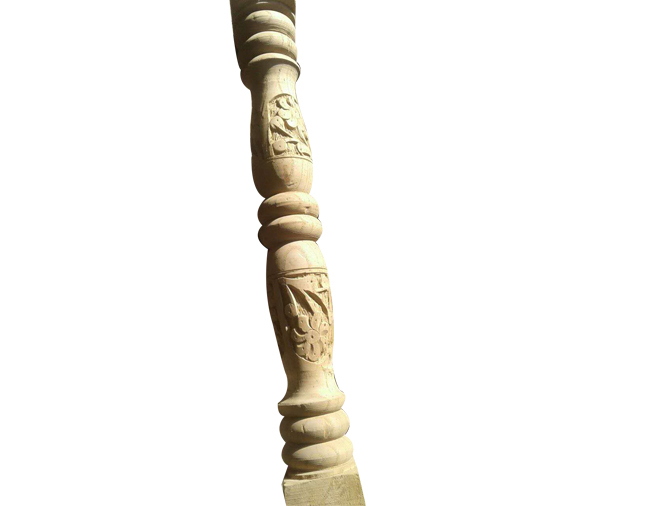

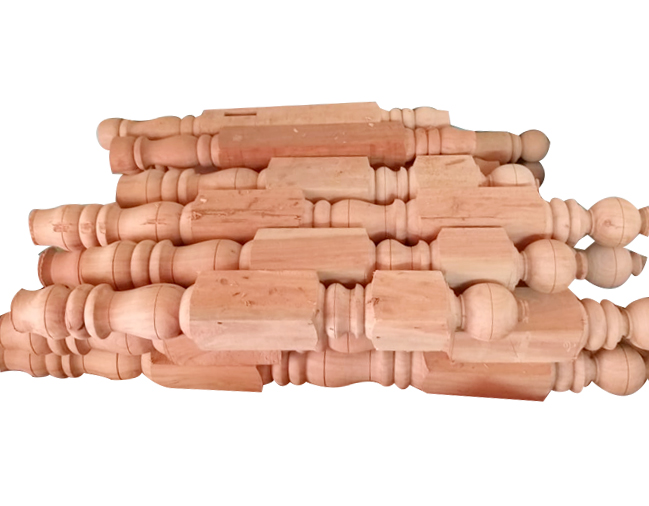

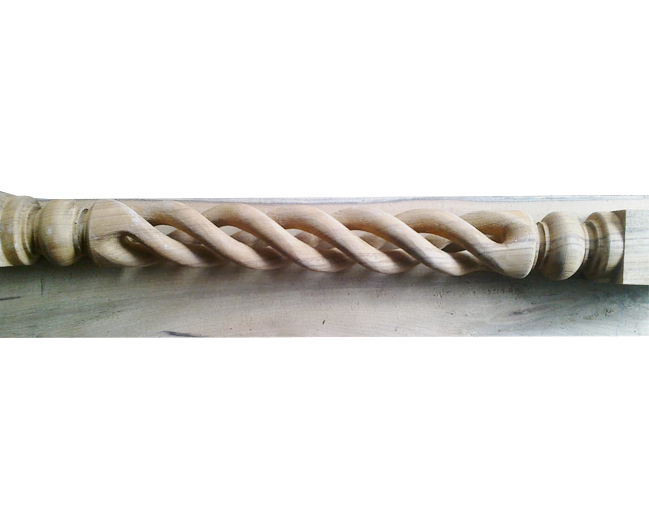

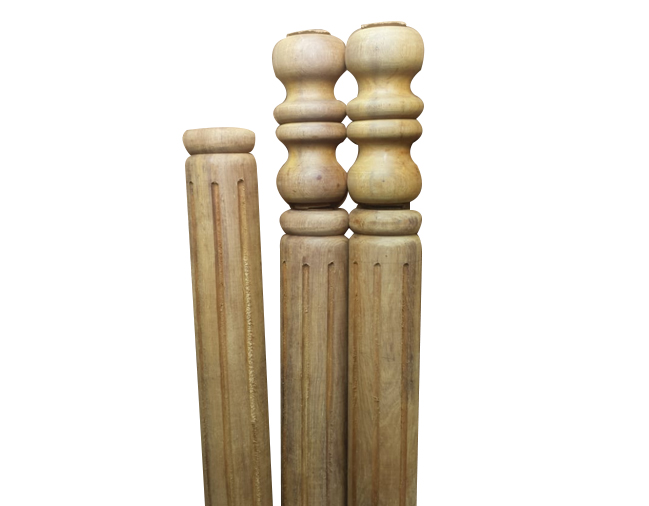

All kinds of wooden staircases,stairway balusters,stairway newel posts;dining table legs;end tableLegs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails, lamp posts,baseball bats and soon
Main configuration:
1. Working Voltage:380V,AC50/60hz,3 phase
2. Working size:max 300mm diameter,max 2000mm length
3. Heavy Duty Square steel tube frame lathe bed
4. 3.5kw air Cooling Engraving Spindle
5. Height Of Centre (mm) 160
6. Width of Bed (mm) 400
7. Motor Power: 4KW 450B/C Motor
8. Cross Slide Travel (mm) 150mm-250mm
9. Lead Screw TPI 2510(X Z)
10. Tail Stock Sleeve MT-4#
11. Oil-water separator
12. Lubrication system for X,Y,Z axes
13. 4pcs woodworking knives
14. Whole suit of maintenance tools
15. Y axis Rack&pinion transmission ensures fast speed and high accuracy
16. X,Z axis with German high precision Ball screw
17. High Precision Taiwan Hiwin 25mm Square Rail
18. Servo motor and Yako driver
19. AutoCAD software
20. RichAuto A122 DSP Handheld control system with USB offline function

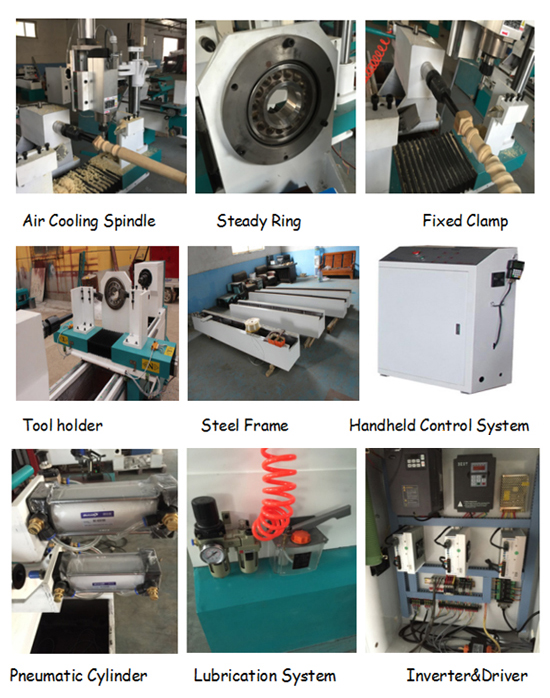

Machine Accessories:
