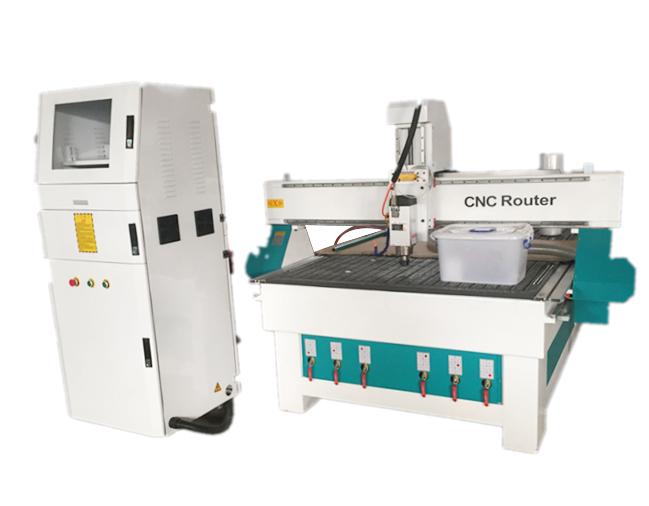

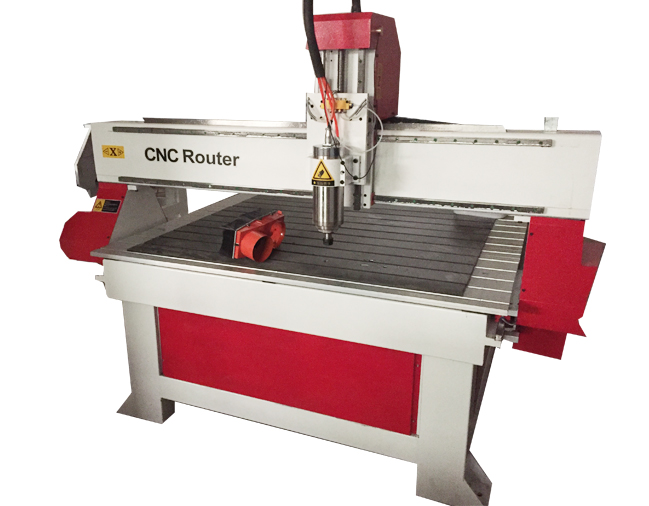

TJ1325 One Head 3 Axis CNC router for Engraving Wood Door

Application:

Mainly used in the cutting and engraving of planes such as wooden doors and wooden beds.


Main configuration:

1.CE Certificated

2.Working Voltage:220V,AC50/60hz

3.working size:1300mm*2500mm*200mm

4.High Efficient German Rack Gear transmission,X,Y axis Rack and pinion, Z axis German Ball screw

5.High Precision Taiwan 25mm Square Rail with X,Y,Z axis

6. leadshine motor and dirver system

7. 7.5KW Fuling converter

8. Changsheng 6kw air Cooling Spindle

9.T-slot working table

10.ARTCAM software

11. NC studio control system

12.Lubrication system for X,Y,Z axes

13.Whole suit of maintenance tools

14.with dust collector



Technical parameters:

    NO.

      Description

    Parameter

1

      X,Y,Z Working Area

      1300mmx2500mmx200mm

2

      Table Size

      1700mmx3040mm

3

      X,Y,Z Traveling Positioning Accuracy

      ±0.03/300mm

4

      X,Y,Z repositioning Positioning Accuracy

      ±0.05mm

5

      Lathe Structure

      WeldedStructure

6

      X,   Y Structure

      Rack gear Transmission, Shaft Linear Bearings

7

      Z   Structure

      Ball Screw, Shaft Linear Bearings

8

      Max.Consume power

      6.5Kw

9

      Max.Speed

      0-32000mm/min

10

      Max.Working Speed

      0-20000mm/min

11

      Spindle Power Motor

      3KW   -cooling spindle

12

      Spindle Speed

      0-24000RPM

13

      Drive Mode

      stepper Motor

14

      Working Voltage

      AC220V/380V, 50/60Hz

15

      Command

      G   code, *uoo, *mmg, *plt

16

      Operating System

      RichAuto DSP A18 4 axis control system

17

      Interface

      USB

18

      Flash Memory

      512M

19

      Collet

      ER20

20

      X,Y   Working Delicacy

      <0.01mm

21

      Software

      Ucancam,  Artcam

22

      Running circumstance

      Temperature: 0℃~45℃ Relative humidity: 30%~75%
