Application:
Besidesworking on flat materials, the machine is widely used in carving cubic and column work piece such as wooden table legs,the human body,figure of Buddha,the goddess of mercy,sculpture,handicrafts,stair handrail,cylinder Musical Instruments.
Basis information:
1.CE Certificated
2.Working Voltage:380V,AC50/60hz
3.working size:1300mm*2500mm*200mm
4.High Efficient Rack Gear transmission,X,Y
axis Rack and pinion, Z axis TBI Ball screw
5.High Precision Taiwan 25mm Square Rail with X,Y,Z axis
6. servo motor and dirver system

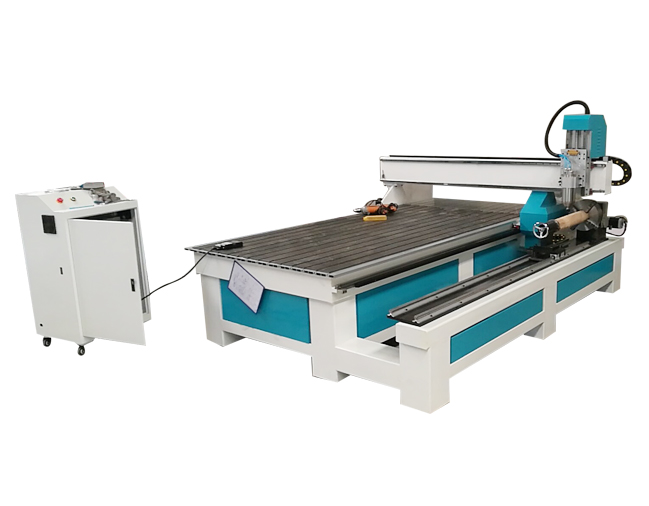

7. 250mm diameter,2100mm length Rotary system
8. 3.7KW Fuling inverter
9. 3kw water Cooling Spindle
10.T-slot working table
11.ARTCAM software
12. RichAuto A18 4 axis control system
13.Lubrication system for X,Y,Z axis
14.Whole suit of maintenance tools
15.dust collector
Technical parameters:
NO. | Description | Parameter |
1 | X,Y,Z Working Area | 1300mmx2500mmx200mm |
2 | Table Size | 1700mmx3040mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z repositioning Positioning Accuracy | ±0.05mm |
5 | Lathe Structure | WeldedStructure |
6 | X, Y Structure | Rack gear Transmission, Shaft Linear Bearings |
7 | Z Structure | Ball Screw, Shaft Linear Bearings |
8 | Max.Consume power | 6.5Kw |
9 | Max.Speed | 0-32000mm/min |
10 | Max.Working Speed | 0-20000mm/min |
11 | Spindle Power Motor | 3KW -cooling spindle |
12 | Spindle Speed | 0-24000RPM |
13 | Drive Mode | stepper Motor |
14 | Working Voltage | AC220V/380V, 50/60Hz |
15 | Command | G code, *uoo, *mmg, *plt |
16 | Operating System | RichAuto DSP A18 4 axis control system |
17 | Interface | USB |
18 | Flash Memory | 512M |
19 | Collet | ER20 |
20 | X,Y Working Delicacy | <0.01mm |
21 | Software | Ucancam, Artcam |
22 | Running circumstance | Temperature: 0℃～45℃ Relative humidity: 30%～75% |
