Application:
1.Woodworking industry: classic red wood furniture processing.
2. advertising industry: advertising billboards, signs making, acrylic cutting, plastic moulds making, other advertising materials making.
3.other industry: all kinds photo engraving, 3d working, widely used in crafts and gifts making also.
4.cnc engraving machine desktop can be used: double-color board, acylic, rubber plate, wooden board, organic glass, lotus
Configuration:

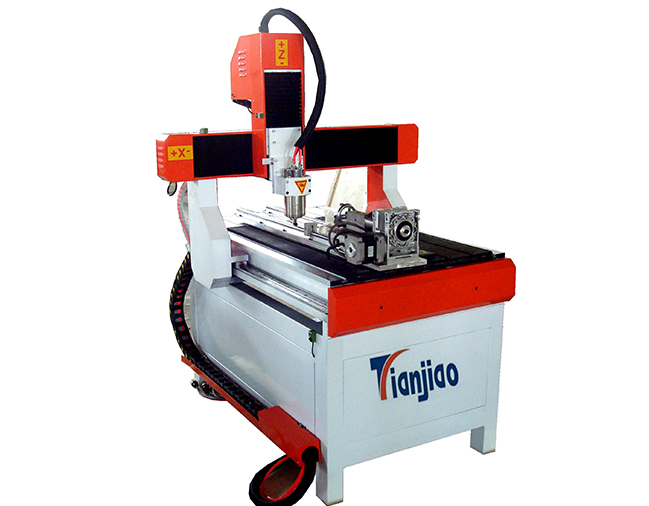

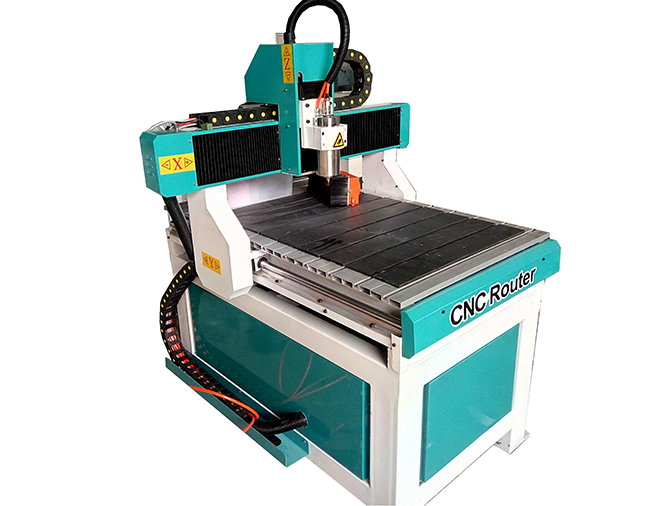

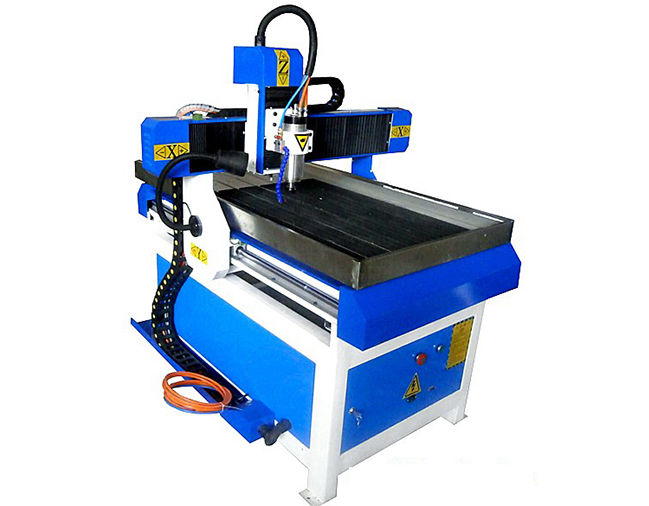

Cast iron bed body, round orbits, ballscrew, DSP control system, 1.5KW
Chinese water cooling spindle, UCANCAM software and Type3 software.
Features :
1. Cnc engraving machine desktop adopt Germanic double nut ballscrew and imported orbit.
2. Break point memory mode to make sure continuous working after electronic drop or other postpone situation.
3. Special saving mode of different pints
4. Gantry mode movement is more durable and will not distorte after long time use and the reposition precision is much better.
5. The desktop type structure offers more stable and more smooth work.
6. Cnc engraving machine desktop widely used for architectural model, schools, companies and governments.
Parameters:
NO. | Description | Parameter |
1 | X,Y Working area | 600*850mm |
2 | Z Working area | 80mm |
3 | Max. speed | 10m/min |
4 | Max working speed | 5m/min |
5 | Working delicacy | 0.03mm |
6 | Repositioning Accuracy | 0.01mm |
7 | Max. feeding Height | 75mm |
8 | Command | G code*.U00*.mmg*.plt |
9 | Surroundings for software | windows98/2000/xp |
10 | Power (spindle is not included) | 300W |
11 | Working voltage | AC220V 50Hz |
12 | Spindle power | 1.5KW water cooling spindle |
13 | Spindle rotating speed | 0-24000rpm/min |
14 | Drive motor | Stepper |

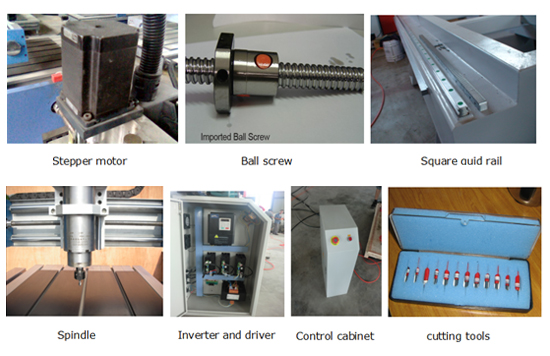

Spare Parts:
