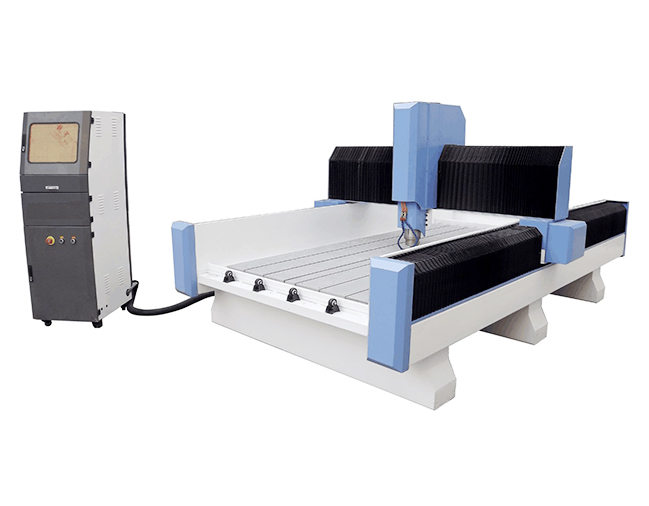

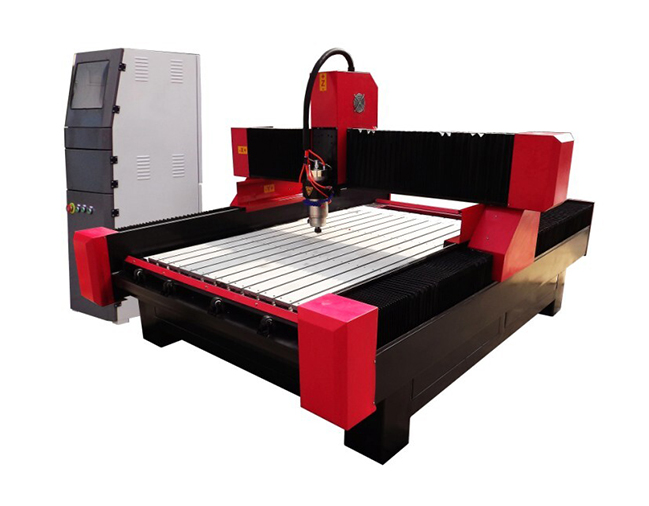

TJ1325 stone engraving CNC Router

Stone engraver TJ1212

Application

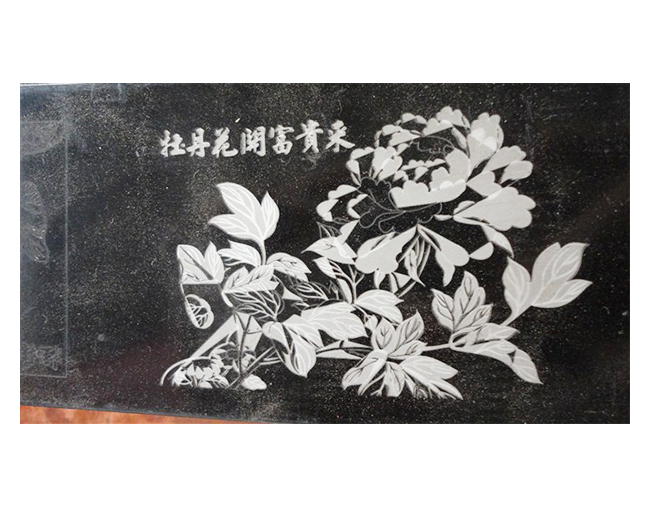

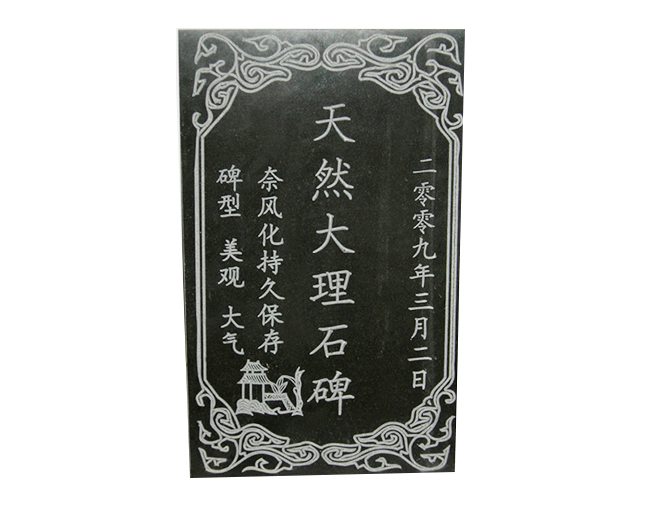

This series of models mainly used for heavy weight of the tile, bluestone,marble, granite, white marble, sandstone,  glass engraving, metals engraving and so on.



Configuration:
1. 4.5kw water cooling spindle
2. stepper motor 118
3. Taiwan Yako driver 2811
4. the whole steel structure
5. all axises imported Twaiwan Hiwin Linear sqaure orbit .
6. ballscrew transimssion
7. Original TYPE3 UCANCAM software
8. DSP Control system (NC studio control system )


Features:

1. X,Y, Z three-axises all use imported square orbits .heavy loading, stable working, high precision and long lifetime .
2. It also equips with water groove and dustproof structure.It can protect the machine and make it long operating life
3. Water cooling constant torque spindle with the imported bearings, high power and low noise.
4. The transducer with stable output signals
5. Fully sgielded,bending circuity, and imported electronic components.
6. Double drivers to drive y axis, motivity is more stronger
7. Whole seamless steel structure,can load weight up to 1000kg/
8. Well compatibility, compatible sofetware CAD/CAM, such as Type 3, Artcam,Castmate,UCANCAM ,Coredraw


Parameters:

    Performance   parameter

    TJ1325

    X,Y   Working area

    1300mmx2500mm

    Z   Working area

    250mm

    Table   size

    1500mmx2700mm

    Processing precision

    0.03mm

    Reposition precision

    0.02mm

    Table   structure

    aluminium

    X,Y,Z   structure

    X,Y,Z ballscrew

    Command

    G CODE

    Machine power

    2KW

    Max   processing speed

    6000mm/min

    Max   speed

    8000mm/min

    Working voltage

    AC380V/50Hz

    Spindle power

    4.5KW water cooling   spindle

    Spindle rotating speed

    0-24000rpm/min

    Drive   motor

    Stepper

    Operation system

    DSP control system
