Applications：

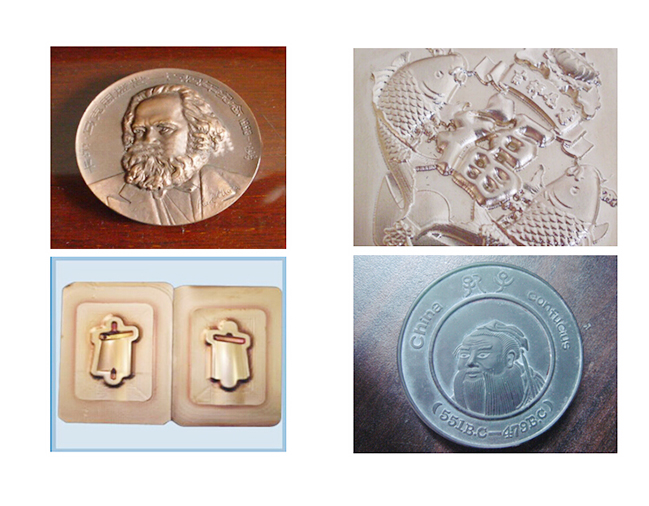

cnc milling machine manufactureres can be used for advertisement engraving, advertisement cutting, stone processing, Cu and AL molding, mold manufacturing, wood processing, craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, light equipment mold processing,sign and mark manufacturing, acrylic board processing, as well as stamp cutting and PCB cutting.
Product feature：
1.Guide Rail: cnc milling machine manufacturers adopt Taiwan HIWIN import straight party rail.Good stability,high accuracy,lower wastage. The X.Y.ZAxis use import high precision and lower wastage extended nut automatic disappear gap ballscrew.
2.Portal Frame: Use aviation industry aluminum, long service time, resistant to wear and low noise.
3.spindle: Water-cooling spindle, resistant to wear and low noise and can cooling the machine timely and effective.
4.High accuracy, It could engrave 2mm-3mm little letter.
5.The control box adopts advanced CNC system, making it high stability. The high speed subdivided engraver motor is installed to ensure low noise , onpolar speed change make the spindle revolving speed reach 24000r/min.
Specifications ：

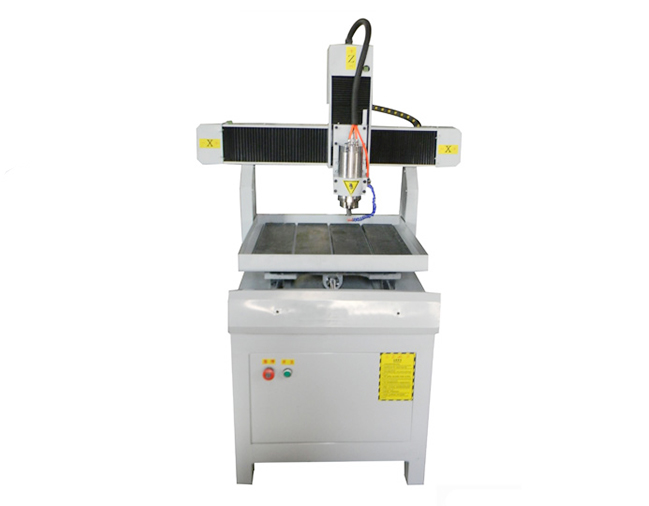

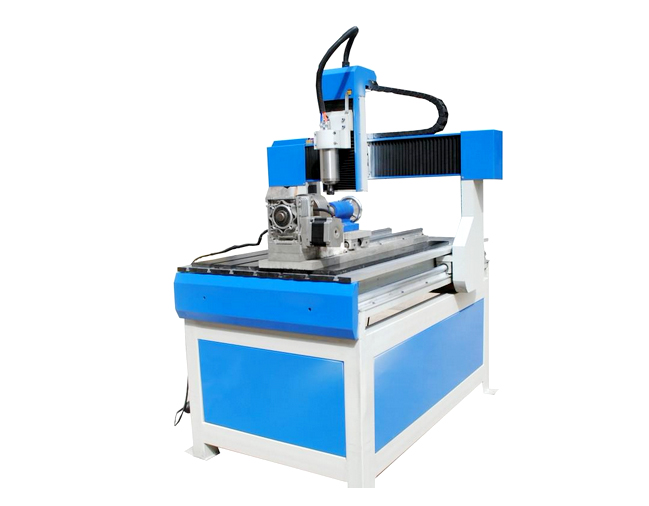

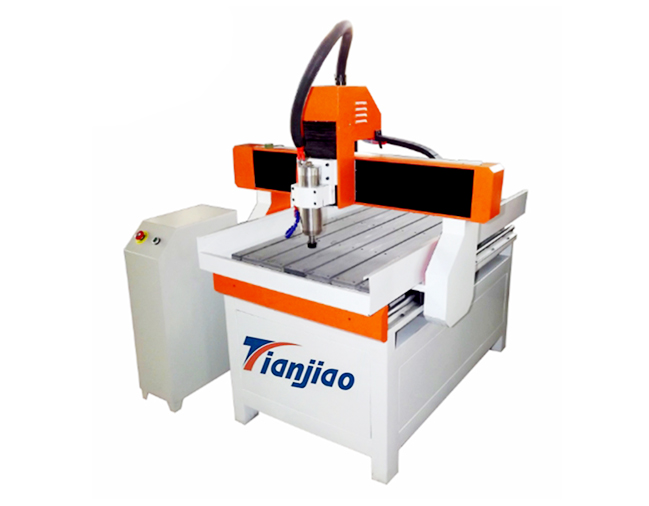

Model | TJ3030 | TJ3636 | TJ6060 |
Work area | 300*300mm | 3600*3600mm | 600*600mm |
Body dimensions | 400*500mm | ||
Max. Feeding height | 100mm | ||
X-Y-Z Structure | ballscrew | ||
Max. Speed | 6000mm/min | ||
Max. Working Speed | 3500mm/min | ||
Max Spindle Power | 800W | ||
Cooling method | water cooling | ||
Spindle Speed | 0-24000rpm/min | ||
Working Voltage | 220V/50Hz | ||
Command Code | G code | ||
Operating System | Nc-studio | ||
Machine table | Aluminum T slot | ||
Fix way | T- Slot | ||
Dust proof | with | ||
Drive Motors | Stepper | ||
X-Y-Z Working accuracy | <0.01mm | ||
compatible Software | Type3,Artcam,Ucancam | ||
cutter tool | φ3.175-φ6 | ||
Package | Ply wooden box | ||
