Application:

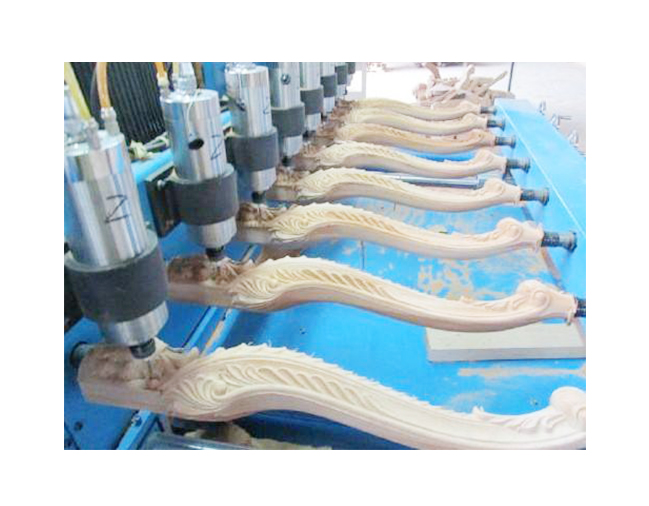

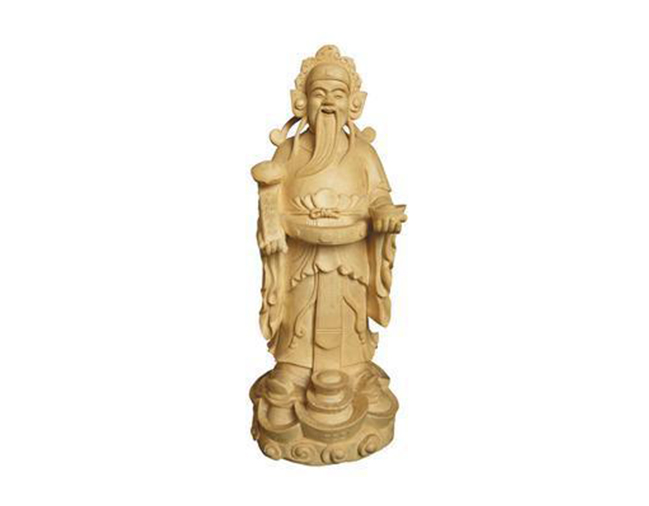

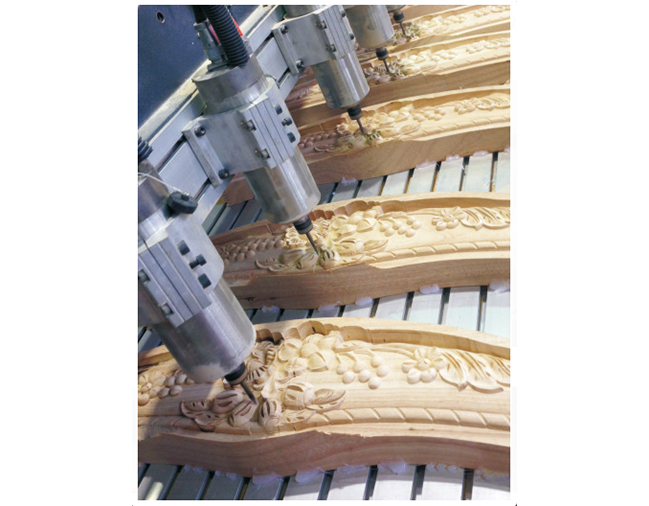

Besidesworking on flat materials, the machine is widely used in carving cubic and column work piece such as wooden table legs,the human body,figure of Buddha,the goddess of mercy,sculpture,handicrafts,stair handrail,cylinder Musical Instruments.

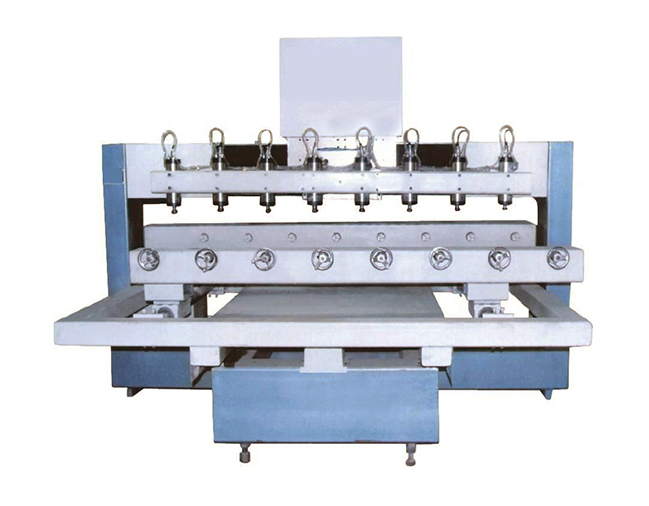

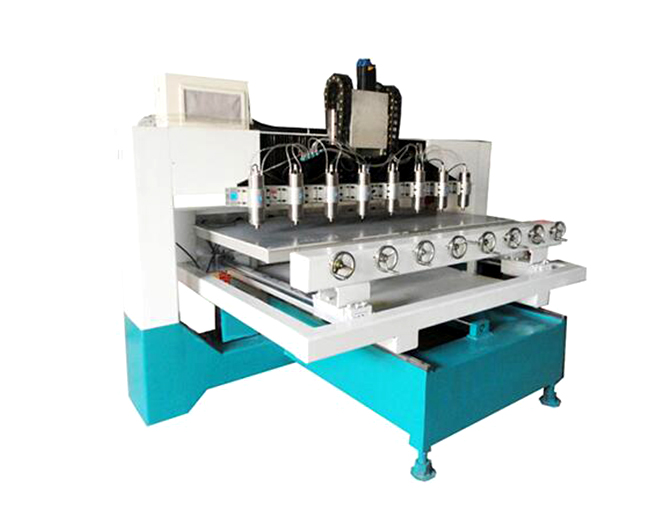

Main configuration:
1. CE Certification
2. Working voltage:380V, AC50/60Hz,3Phase
3. Working length:1200mm,Max diameter 250mm
4. Industrial Heavy Duty Casr steel Structure
5. High Efficient German Rack Gear transmission,X,Y axis Rack and pinion,Z axis German Ball screw
6. Taiwan Hiwin square guid rail
7. Servo motor and driver System
8. 8*2.2KW Inverter
9. 8*2.2kw water cooling spindle
10. Table moving making the machine can work on both flat and rotary shapes
11. RichAuto 4th Axis A18 DSP handheld Controlling System with USB interface
12. Whole set of maintenance tools,Allen wrench,Spanner,copper connection,clamps etc.
13. CD of Manual of Operation,Training Video
Technical Data:
Machine model | TJ 12025 |
XY working area | 1200*250 mm |
Z working area | 300 mm |
Table size | 1600*3100 mm |
Spindle | 8*2.2KW water cooling spindle |
Speed of spindle | 0-24000 rpm/min |
Max. speed | 60 m/min |
Max. working speed | 30 m/min |
Working delicacy | 0.05 mm |
Table | movable table |
Command | G code*u00* mmg*plt |
Surrounding for software | Windows98/2000/xp/win7 |
power | AC380 3 phases |
Work mode | Servo motor |
Structure | Steel structure, square orbit, ball screw |
Control software | RichAuto 4 axis A18 DSP handheld |
