TJ-1390-A1 Laser Engraving Cutting Machine

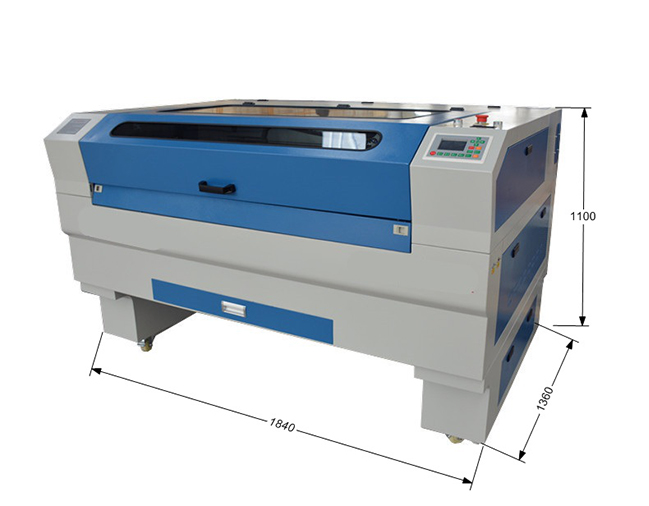

    Machine size

    1840*1360*1100mm

    Packing size

    1960*1480*1300mm

    Machine weight

    G.W450KG     N.W 350KG

    Packing CBM

    2.75CBM    3.77CBM with wooden carton

    Application

    Advertising   industry, woodworking industry, lighting word engineering, LED advertising characters, furniture

    manufacturing, craft products, logos, packaging,   architectural models, industrial molds, decoration, clothing, textiles,   leather,

    industrial fabrics, etc.

    Working material

    It can cut   non-metallic materials such as acrylic, two-color board, PVC, wood board,   MDF, leather, paper, cloth, etc. It can also

    engrave glass and stone.

    Laser Tube Power

    60w，80w，100w，130w，150w

    Control system

    DSP control technology, can be connected   to a computer or offline USB can be used

    Driver

    Stepper motor

    Guide Rail

    Linear Rail

    Table type

    Honeycomb, knife (optional)

    Transfer method:

    Synchronized Belt transfer

    Laser type

    Glass cavity sealed off CO2 laser with a   wavelength of 10.6μm

    Laser tube cooling

    Pure circulating water cooling

    Capacity regulator

    0-100% segmentless control, 0-100%   adjustable within software

     PositionaI   accuracy

    ≤±0.05mm

    Engraving speed

    0-1200mm/s

    Cutting speed

    0-600mm/s

    Minimum molding word

    English letters1mm

    work environment

    0-45 ℃ temperature ,humidity 5% 95%   (without condensate)

    Machine power

    ＜3KW

    Software support format

    PLT、DXF、AI、BMP、RLD,can support   AutoCAD、CorelDRAW output directly.
