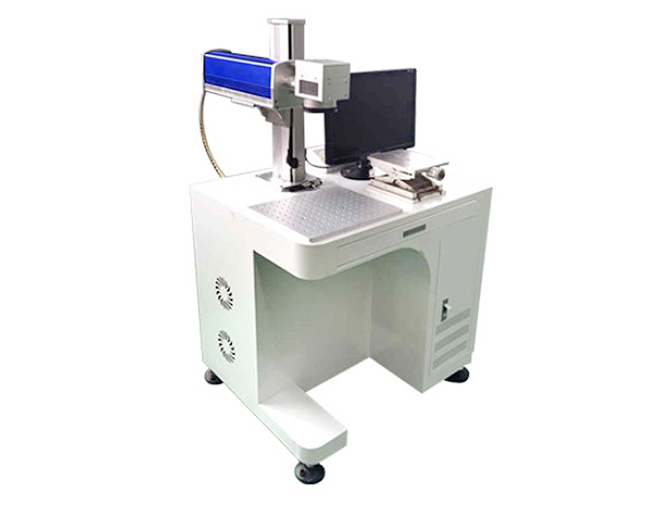

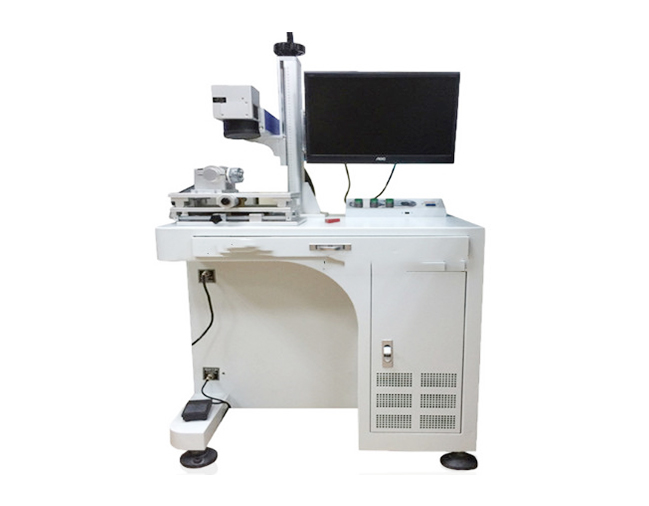

TJ2020C Fiber Laser Marking Machine 30w

(1) Application industry:

1 Medicines, personal care products, tobacco, food and beverage packaging, alcohol, dairy products, clothing accessories, leather, electronic components, chemical building materials and other industries.

2 can engrave non-metal and part of the metal. Widely used in food packaging, beverage packaging, pharmaceutical packaging, architectural ceramics, clothing accessories, leather, fabric cutting, craft gifts, rubber products, electronic components packaging, shell nameplates, etc.

3 It is applied to the marking of various non-metallic materials and products, such as laser marking of medicine, cosmetics, plexiglass, ceramics, plastics, wood, rubber and leather, paper products, electronics industry, various instruments and control panels.


(2) Applicable materials:

1. CO2 laser marking machine is suitable for marking most non-metallic materials and some metal materials, such as paper packaging, plastic products, label paper, leather fabric, ceramic glass, resin plastic, bamboo and wood products, PCB board, etc.




    Laser marking machine specifications

    Item

    TJ2020C-30W

    Laser generator

    CO2    glass tube (CO2 metal tubefor optional)

    Laser power

    30W (20W 50W for optional to satisfy   different marking depth)

    Table size

    220*300mm(300*300mm for optional)

    Marking range

    100*100/150*150/160*160/175*175/200*200

    /300*300mm

    Marking depth

    0-0.5mm depends on the laser power you   choose

    Marking format

    Graphics, Text, Bar Codes,   Two-dimensional Code,Batchnumber,Serialnumber,Frequency,etc.

    Graphic Format Supported

    bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

    Control system

    PC control

    Software

    EZCAD

    Working voltage

    220V50HZ(110V for optional)

    Computer

    Yes

    Cooling system

    Water cooling system
