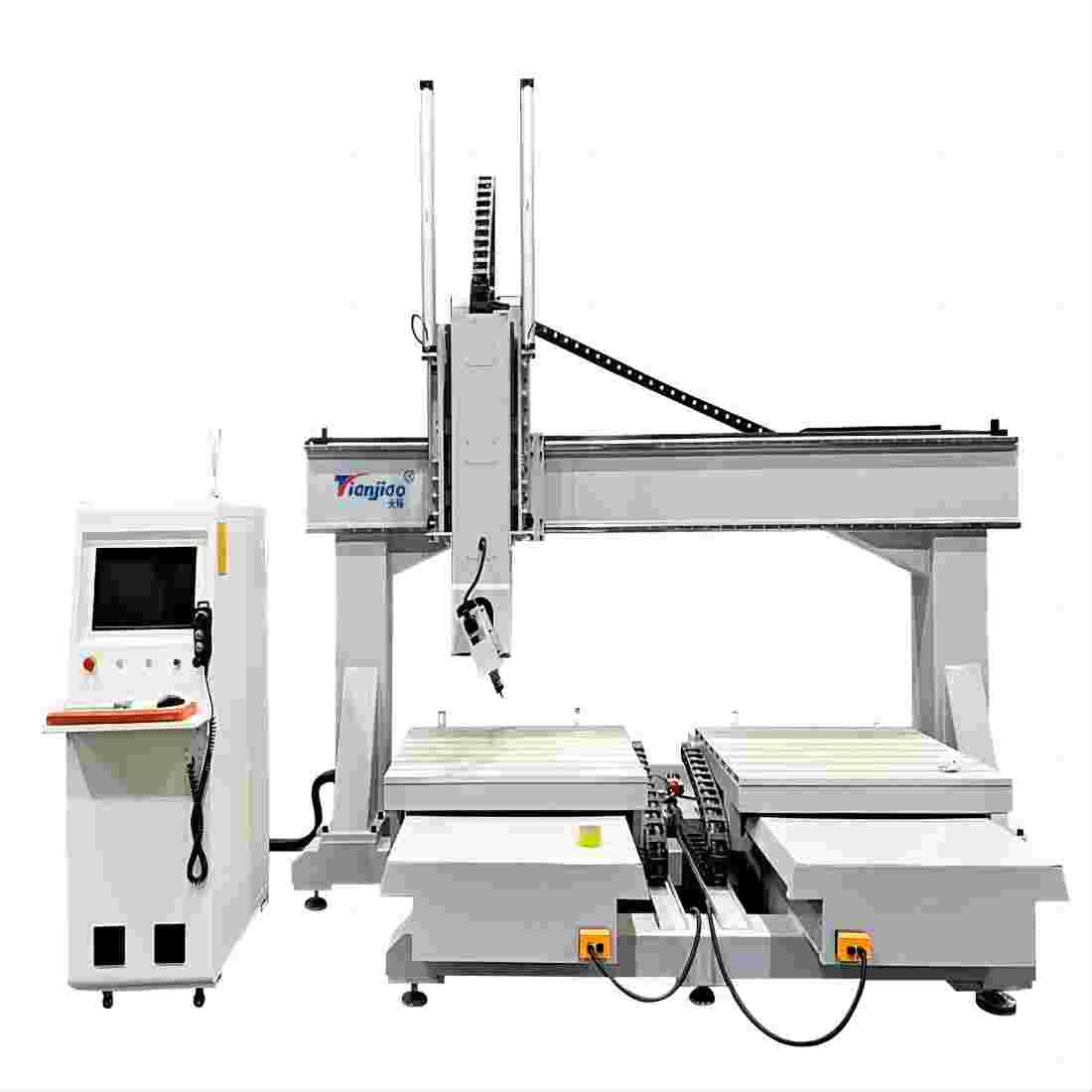

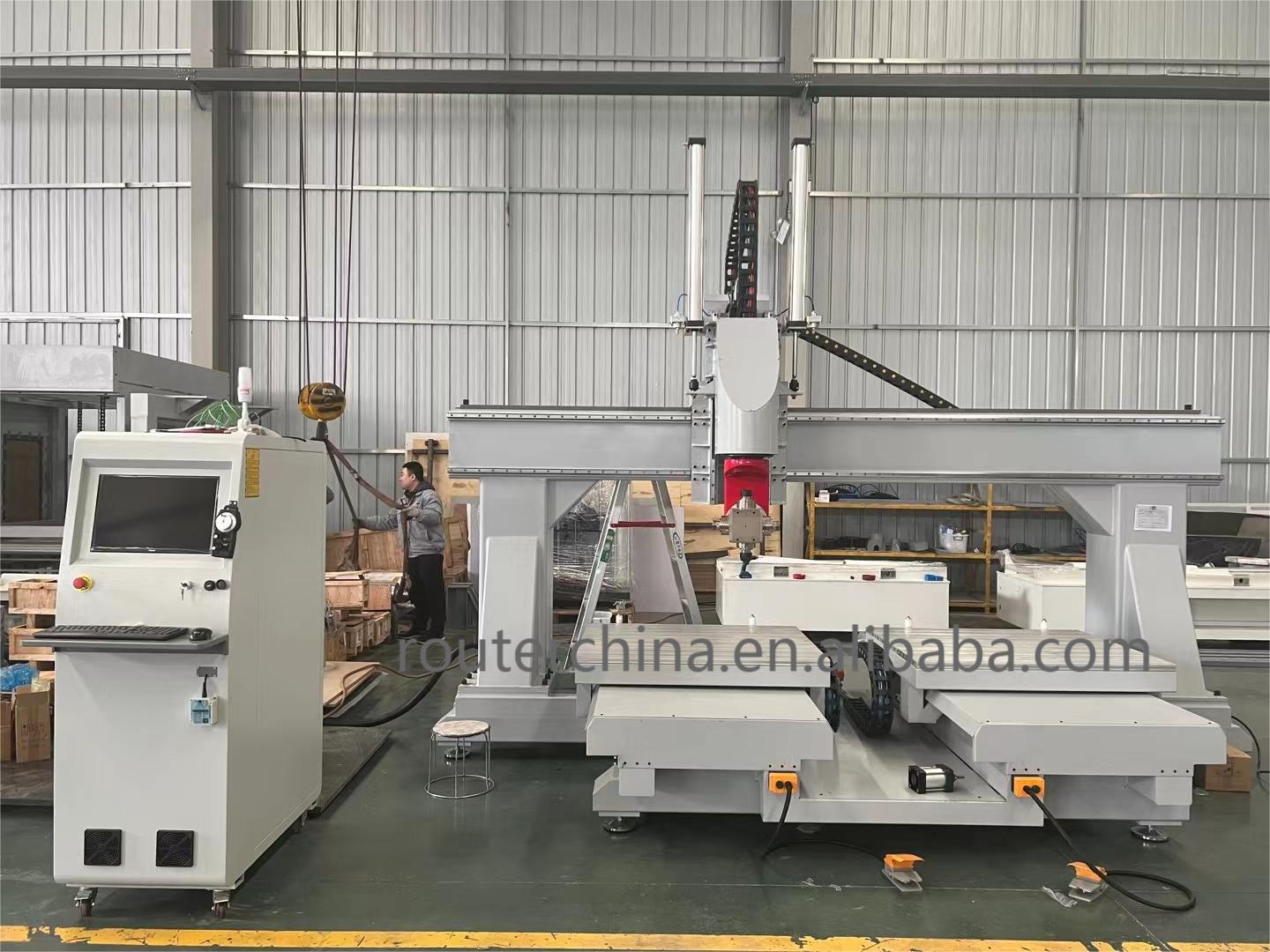

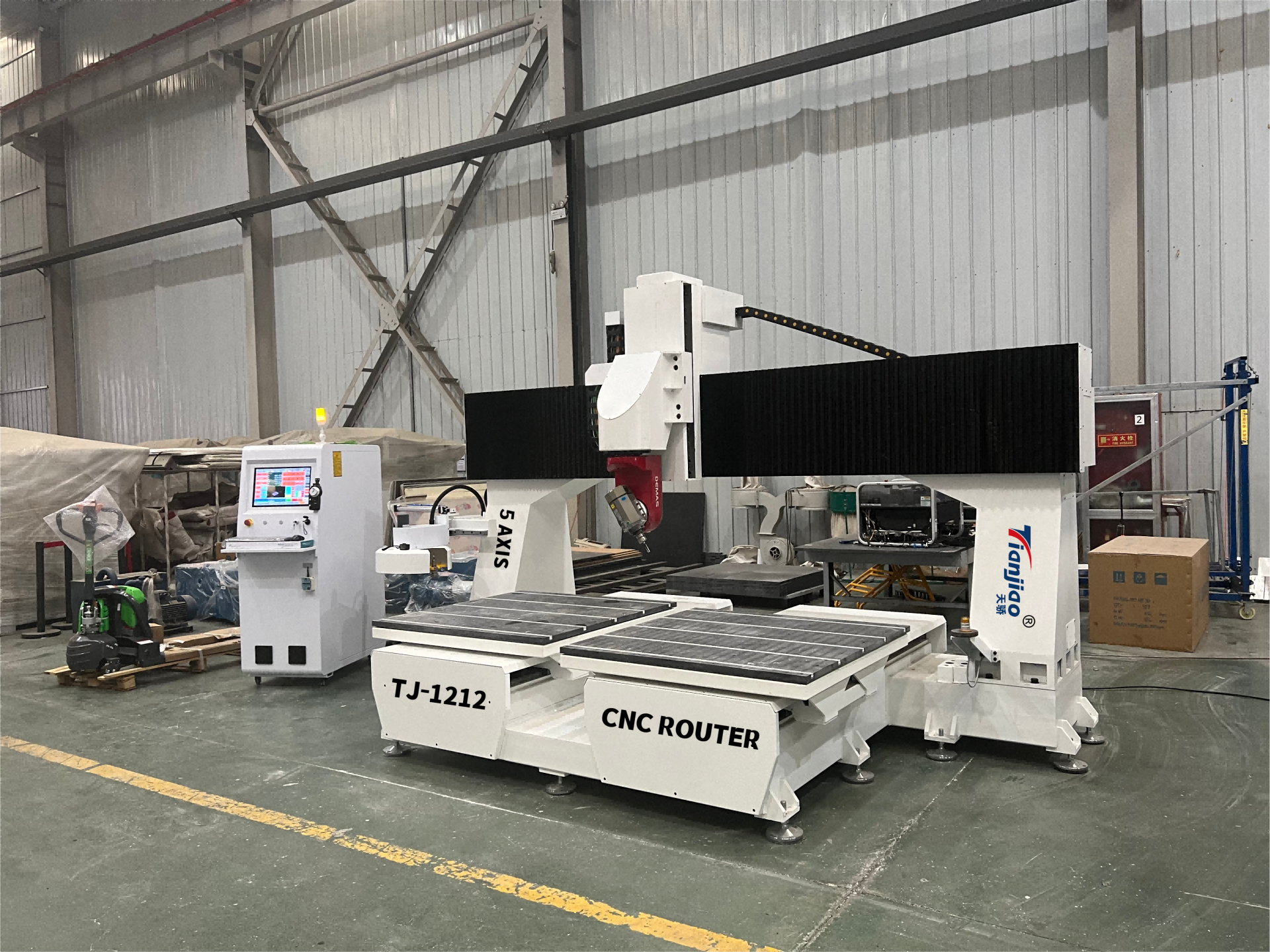

TJ-1212 High precision 5 Axis CNC milling router machine for wood foam aluminum molds

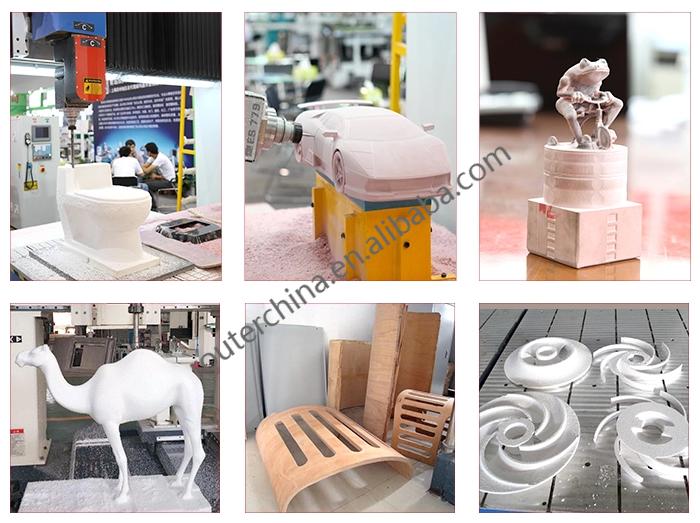

Any kinds of molds,patterns on metal and soft-metal materials, 3d models.

1. Wooden Molds patternsindustries:

Sculpture various large non-metallic mold can be particularly suitable for any kind of wood, resins, wooden pattern model, wooden model aviation and other wooden mould.

 2. Styrofoam EPS foam molds patterns industries:

Figurative/characters sculpture,animal sculpture,outdoor sculpture, modern sculpture,theme park display,3d sculptures.

 3. Lost foam industries.

 4. 3D model industry:

Cars models, aerospace models, boat ship marine yacht vessels models, transportation. Spare parts of industries above.


Model
TJ-1212 5A
Control system
Taiwan New Generation control system
Spindle
Demas five-axis head and 9KW HQD warer-cooled spindle
Inverter
Fuling 9KW
Table
Aluminum alloy T-slot table top
Journey
Effective stroke 1200*1200mm (two tables)
Tool change
8 tool changer holders
A-axis swing angle
-120°  - 120°
C-axis rotation angle
-400°  -400°
Workbench load
80kg/㎡
Max.output power
19KW
Spindle maximum speed
24000r/min
Machine weight
4T
Machine packing size
4.2m(L)*2.8m(H)*3.7m(w)
