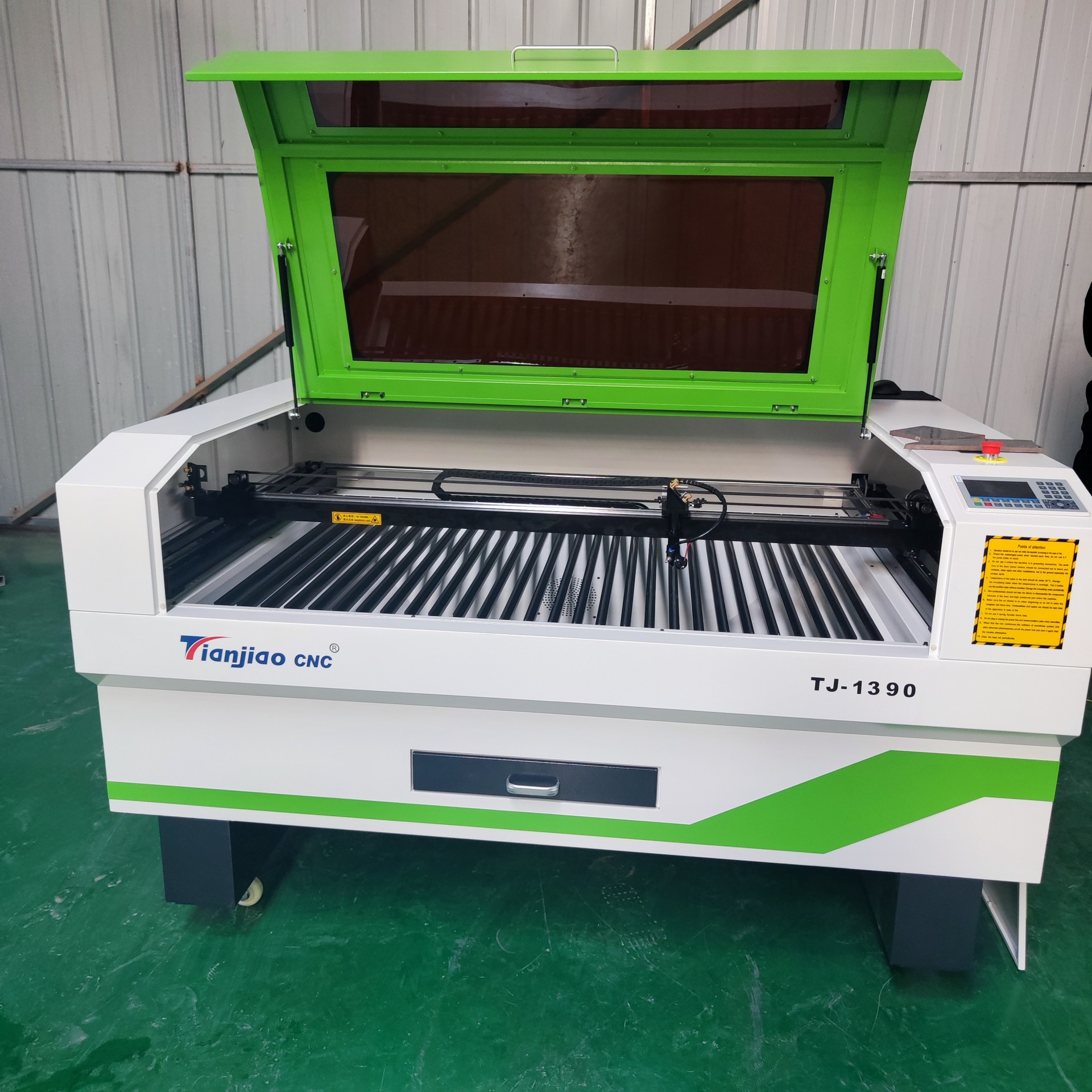

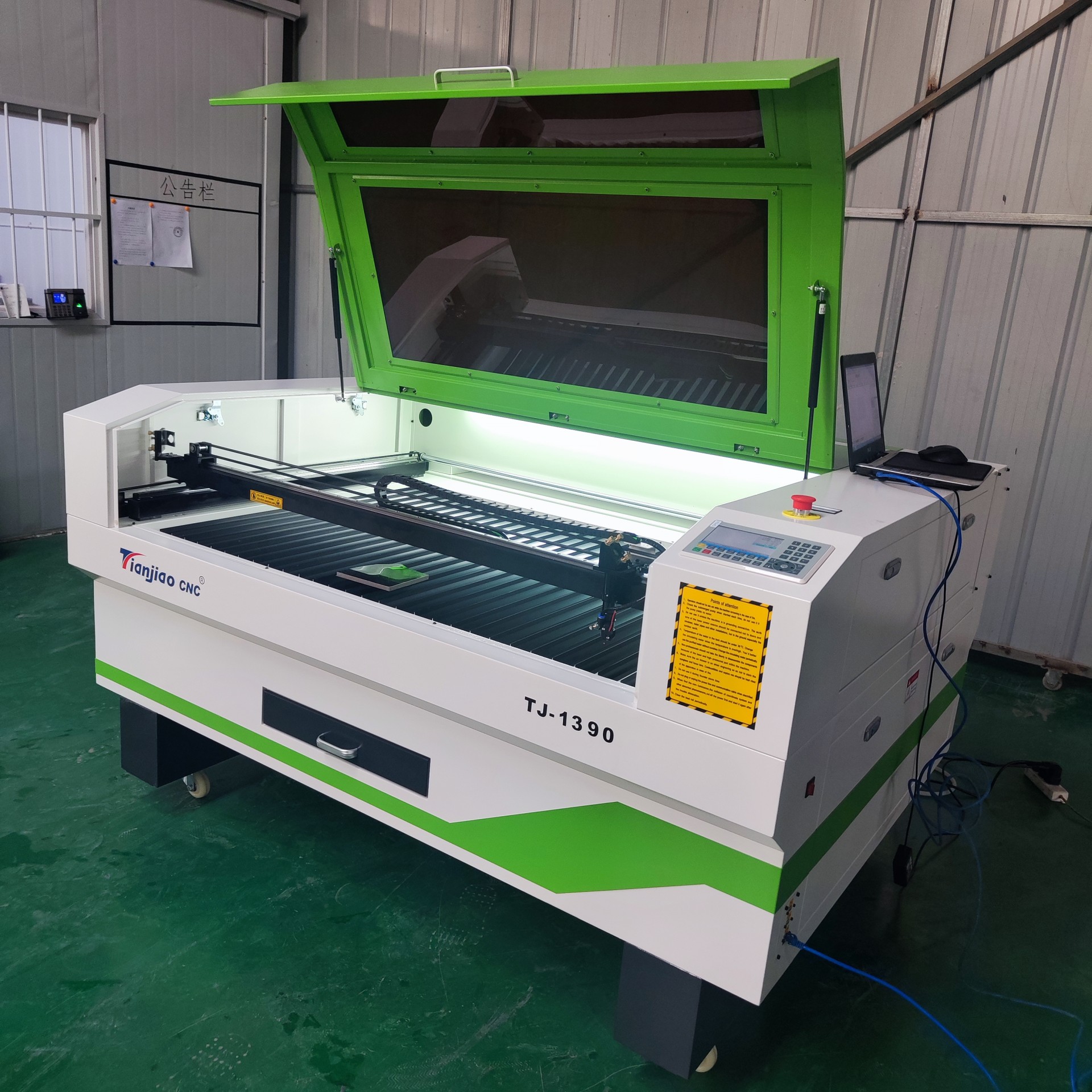

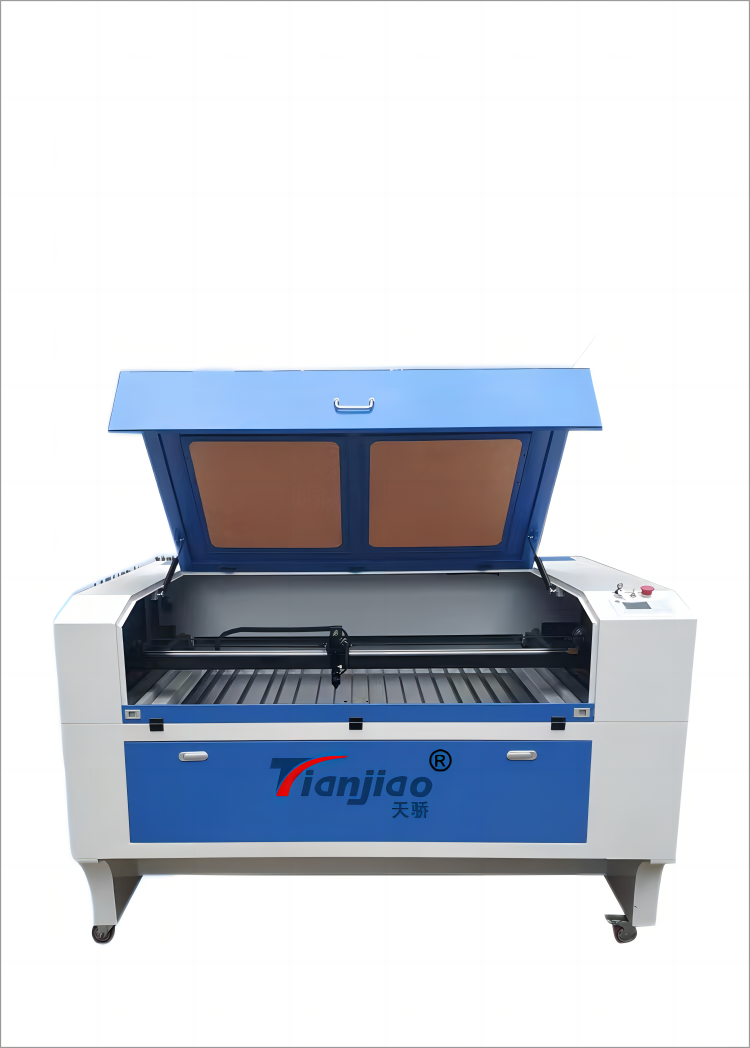

CNC Laser engraver cutter and Co2 Laser cutting machine 1390 130W 150W for Non-metal wood plywood

Application field and effect picture display:

1.Clothing, embroidery, cloth toys, home decoration fabrics, handbags, gloves, toys industry leather, leather cutting and surface
carving.
2.Precision cutting of non-metal sheets, such as acrylic board, medium density decorative board, etc., in handicraft, model,
advertisement, decoration, electric appliance, plastic industry.

Number	Name	Parameter
1	Working area	600x900mm
2	Laser power	80w 100w 130w 150w
3	Brand of laser tube	Reci EFR Yongli
4	Red dot point to position origin	YES
5	Guide Rail	Taiwan
6	Drive	Leadshine
7	Motor	Stepper motor
8	Cooling system	Water chiller
9	Control system	Ruida 6445s
10	Control software	RD works V8
11	Graphic format supported	BMP, PLT, DST, DXF, AI, JPG, GIF, PGN, TIF
12	Exhausted fan	550w
13	Lens and reflect mirrors	mirrors and lens: 3 reflection mirror and 1 lens
14	Voltage	220v/50hz or 110v/60hz
15	Engraving speed/cutting speed	60000mm/s/36000mm/s
16	Machine size	180014001070mm
17	Packing size	200016001200mm
18	NW/GW	350kg/400kg
