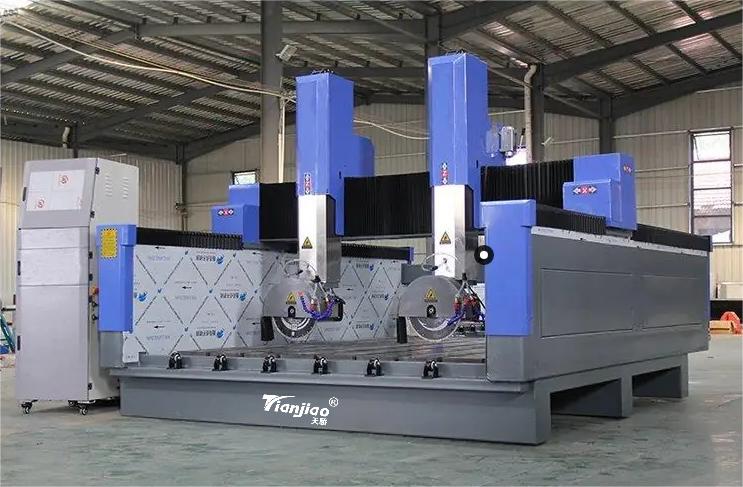

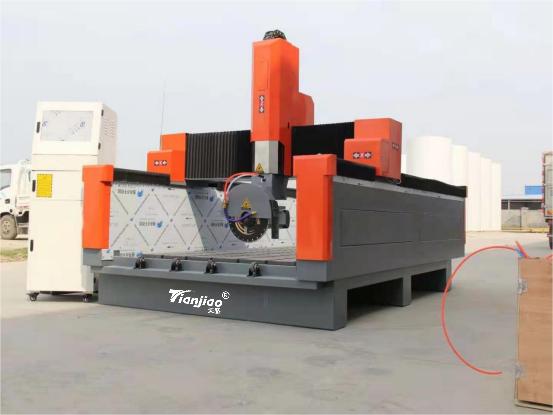

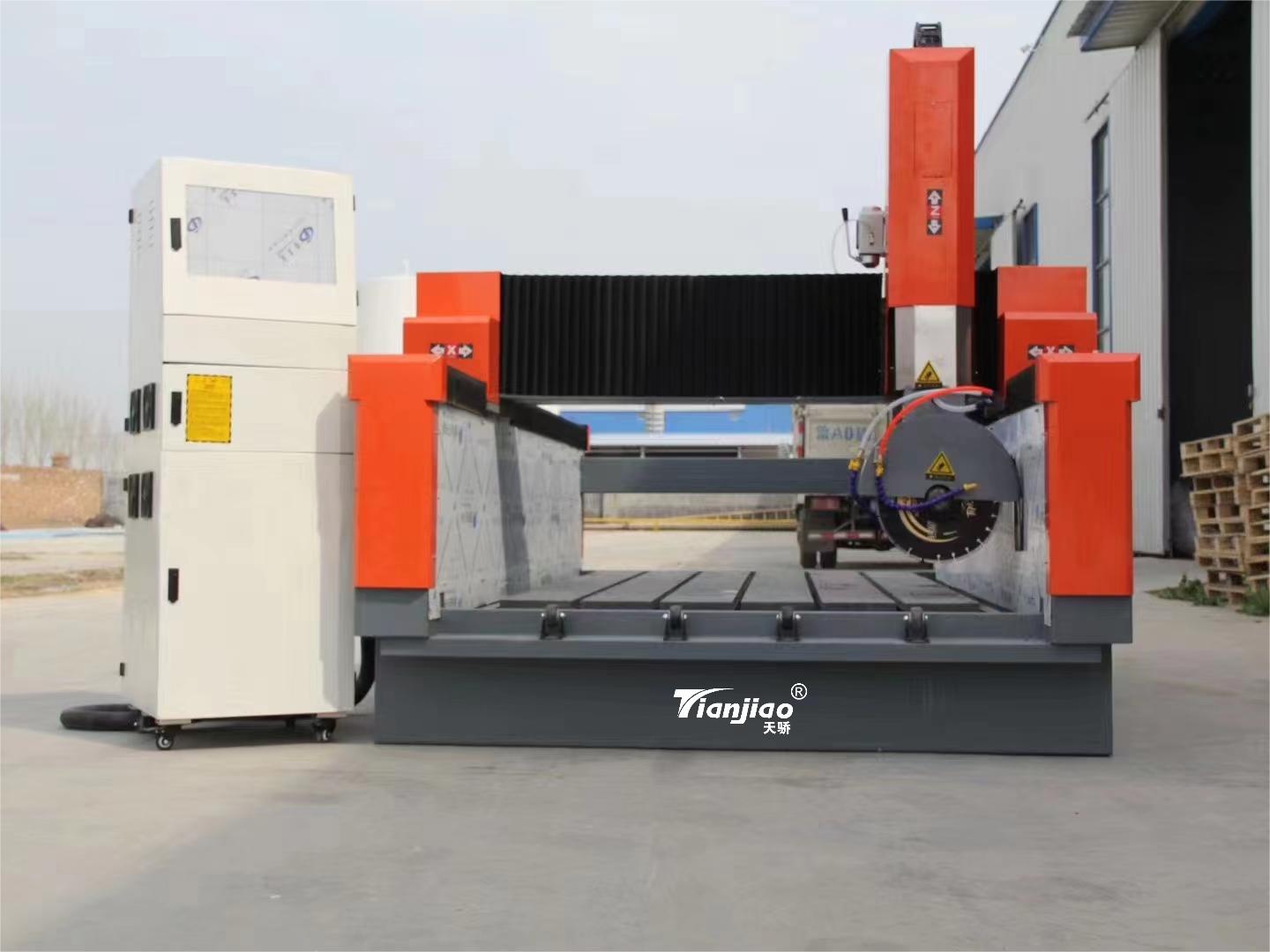

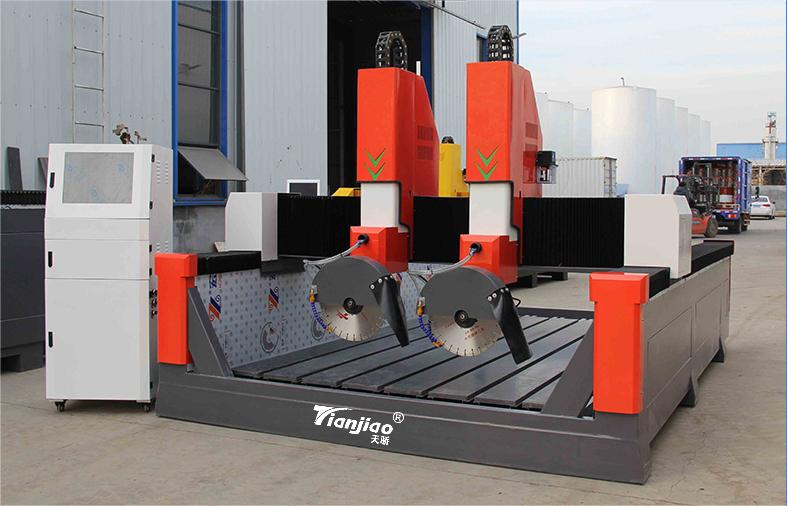

TJ-1325 4 axis Saw blade Stone Cutting Machine Cnc Cutting Machine Automa Cutting Machine

4 axis cnc engraving machine  for stone cutting.  which can cut and edge at any angle and shape for granite, marble, artificial stone, slate and other stone materials.  So it is widely used in slate application industry, prefabricated building industry, home decoration industry, etc.  Its maximum cutting length is 2000mm, maximum cutting widths is 600mm, and maximum cutting thicknesses is 20mm.


XYZ axis travel
2500*1300*600mm
Bed material
The whole steel structure is welded seamlessly, treated by vibration aging, no deformation and no stripping
Driver
DMA860H
Drive motor
XY axis 450B, Z axis 450C
Saw blade motor
380V-7.5KW
Saw blade diameter
400mm
Cutting depth
20mm
A axis
86-450B motor with Japanese Teijin harmonic reducer
Rail
25 Straight square rails
Control system
A18 Control system
Machine size
3200*2250*2000mm
Machine weight
1600KG
