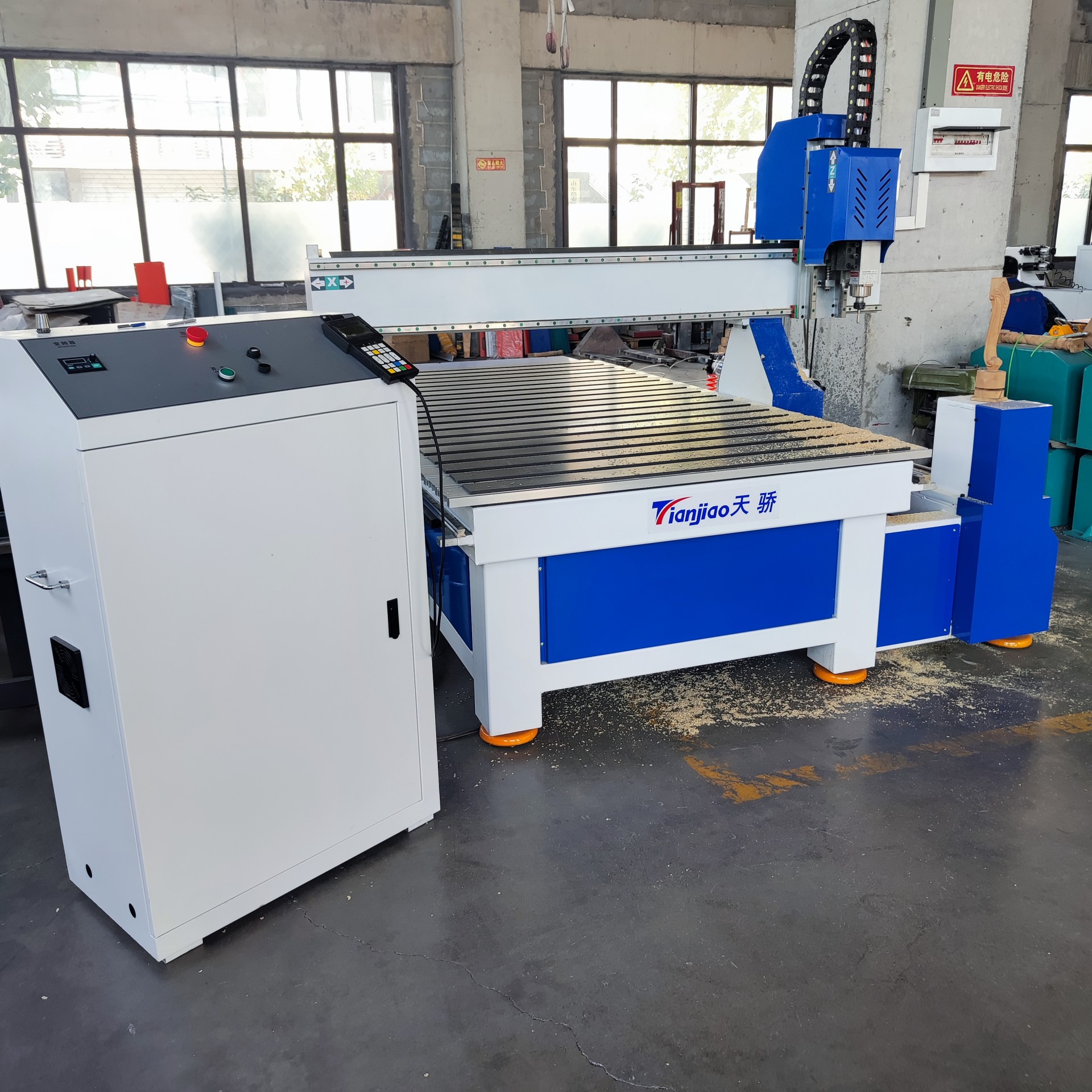

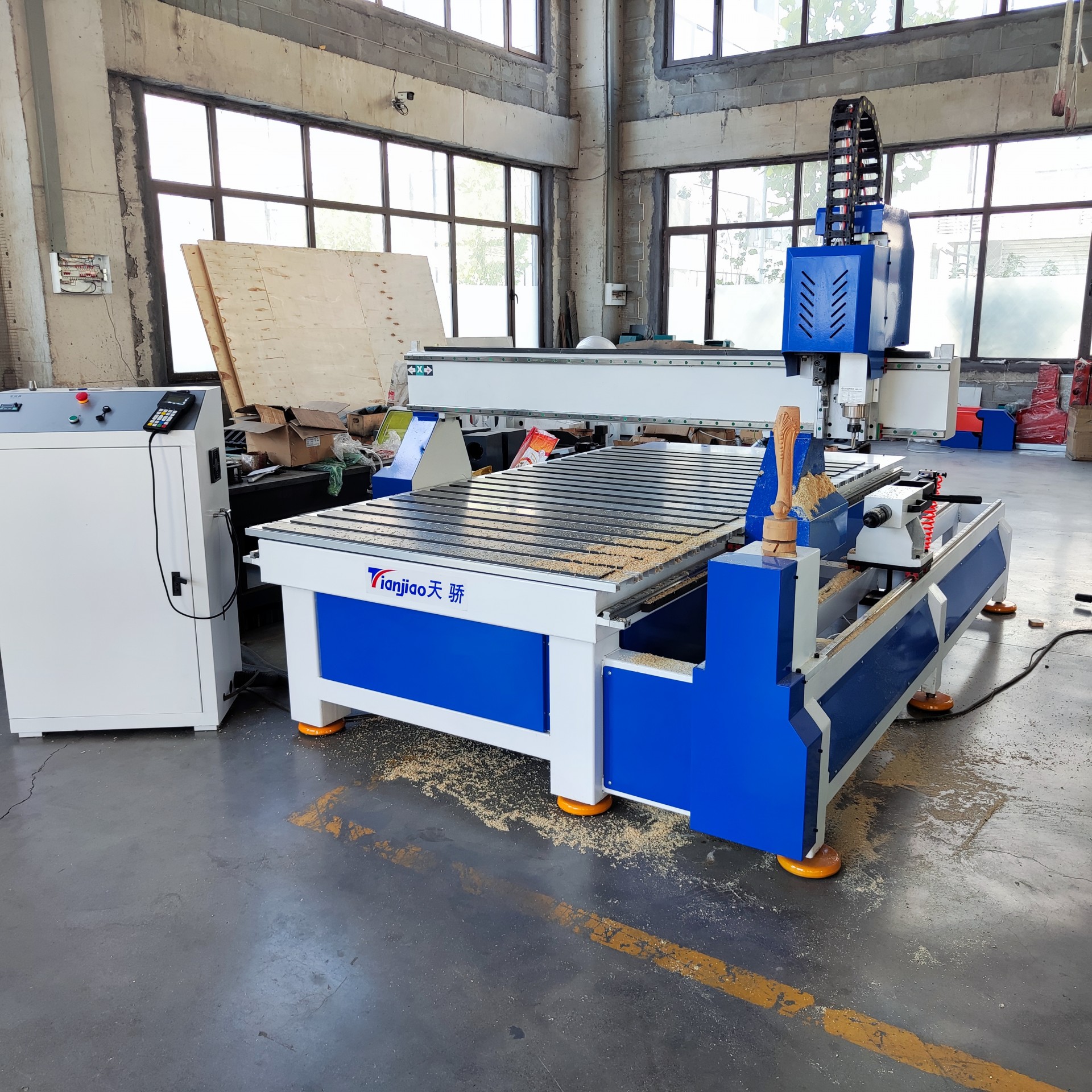

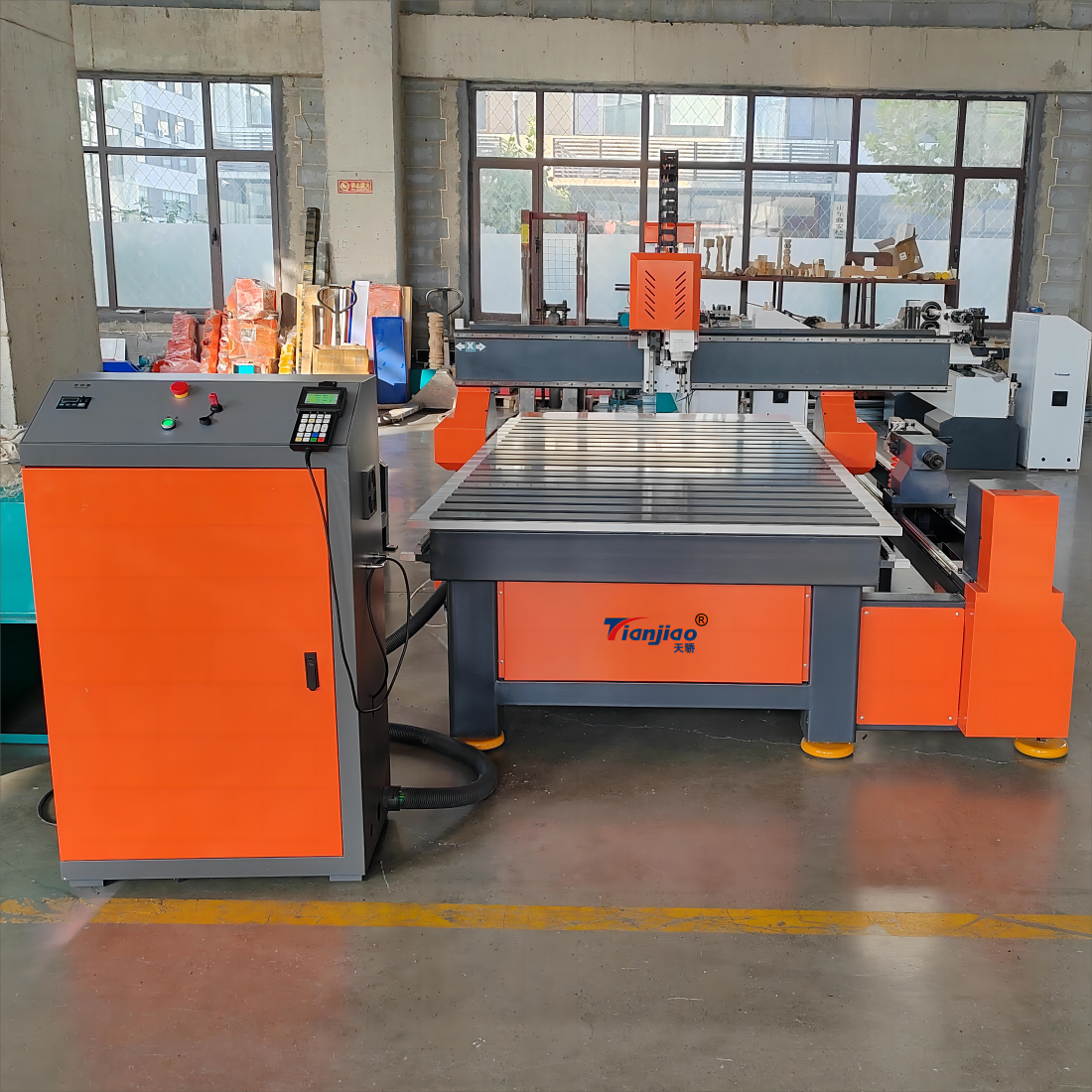

Tian Jiao 1325 4 Axis Rotary Cnc Router 3D Engraving Machine for Wood

Scope of application

This wood carving machine is widely used in door production, advertising, furniture lines, artworks, stair posts and table legs

Can process two-color board, pvc board, mold, molding, plate, copper, aluminum, fireproof woodworking, engraving board and so on.




NO.
 DescriptionParameter
1.
Table Size
1300*2500mm
2.
Three-dimensional carving
250*2000mm
3.

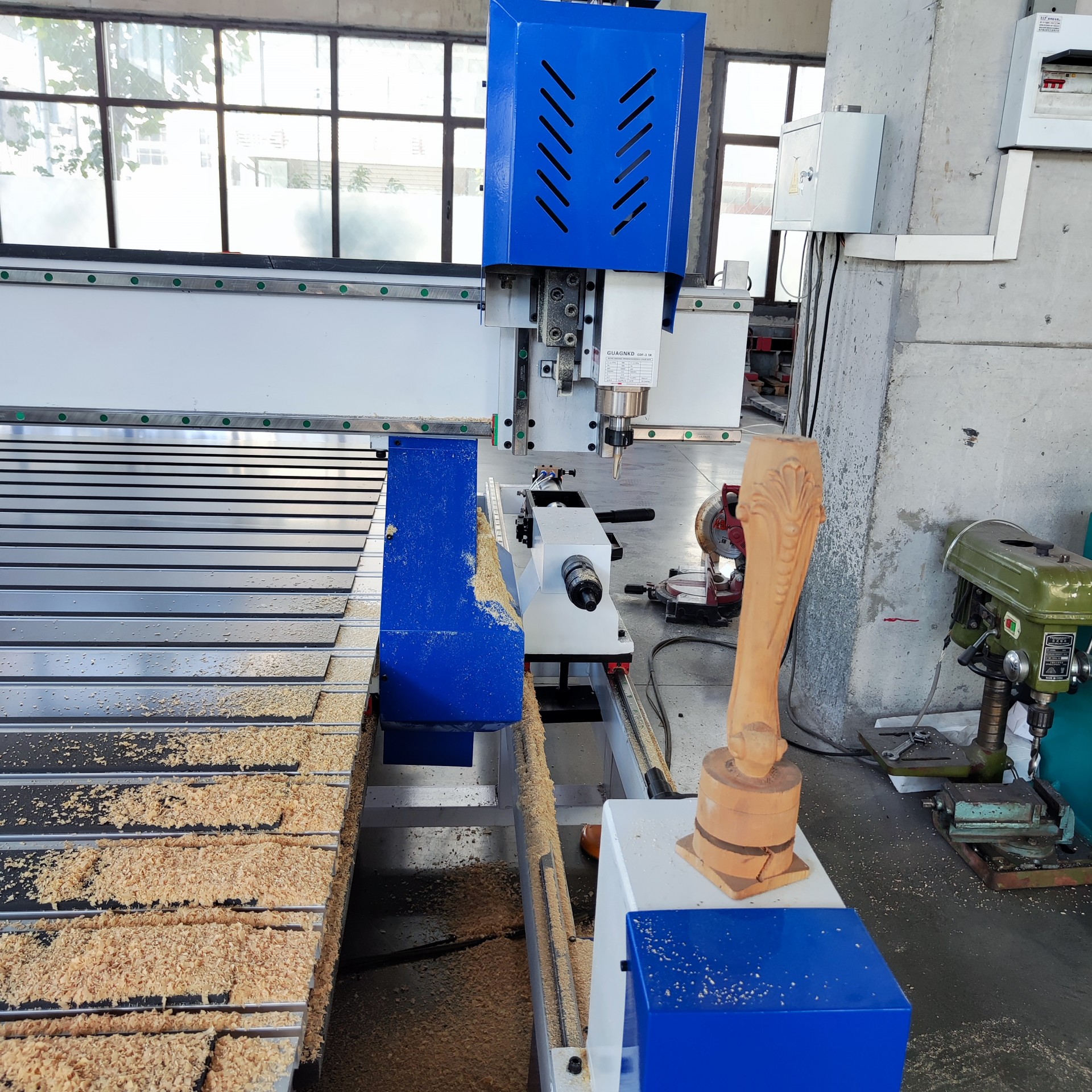

Lathe size
200*1500mm
4.
Lathe Structure
Welded Structure
5.
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
6.
Spindle Power Motor
6KW Air cooled main shaft
7.
Spindle Speed
0-18000RPM
8.
Drive Mode
YKA  Servo drive
9.
Working Voltage
AC220V/380V, 50/60Hz
10.
Max. Working Speed
0-3000 rpm
11.
Operating System
DSP Operating System
12.
Frequency changer
7.5KW
