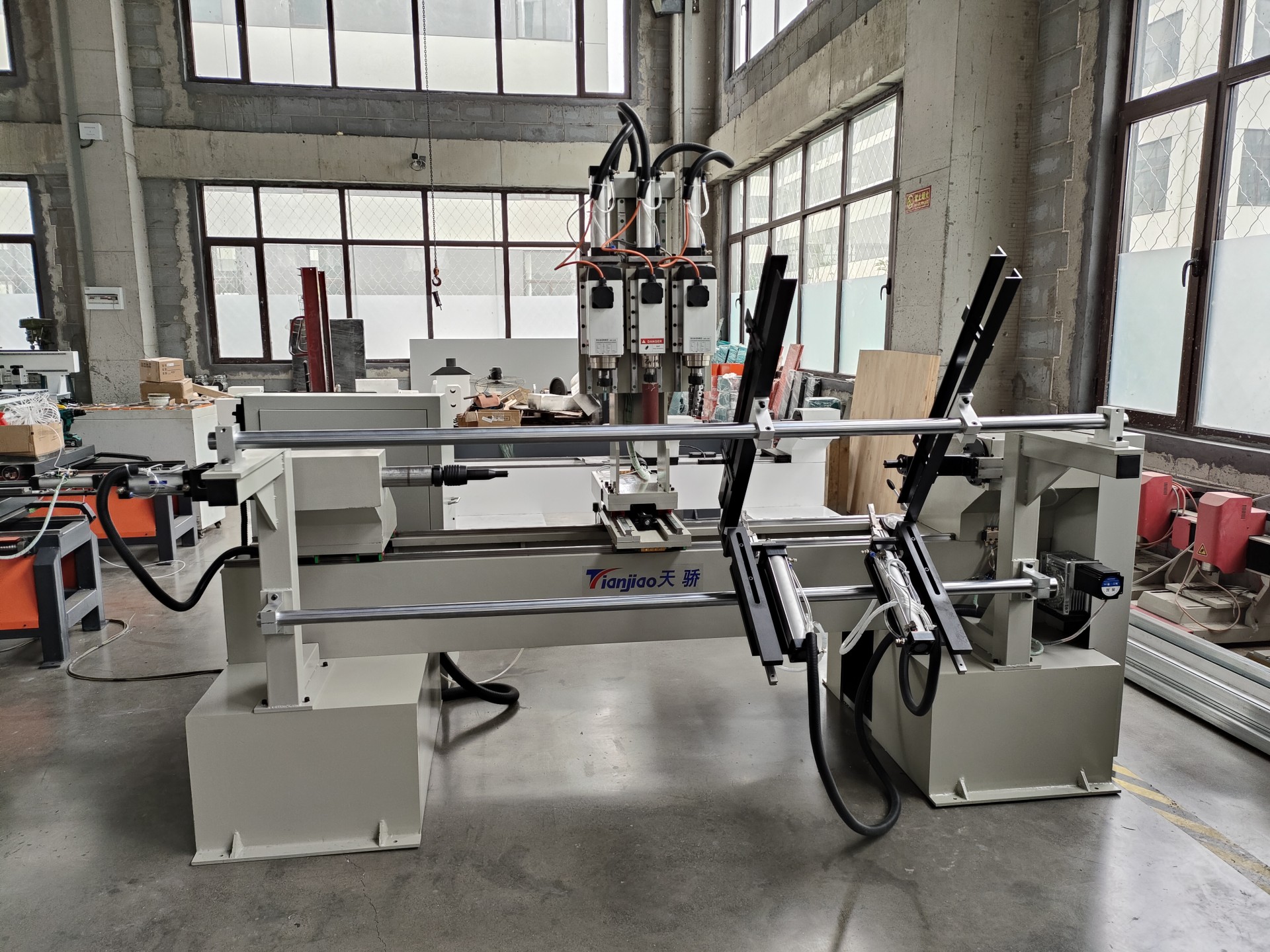

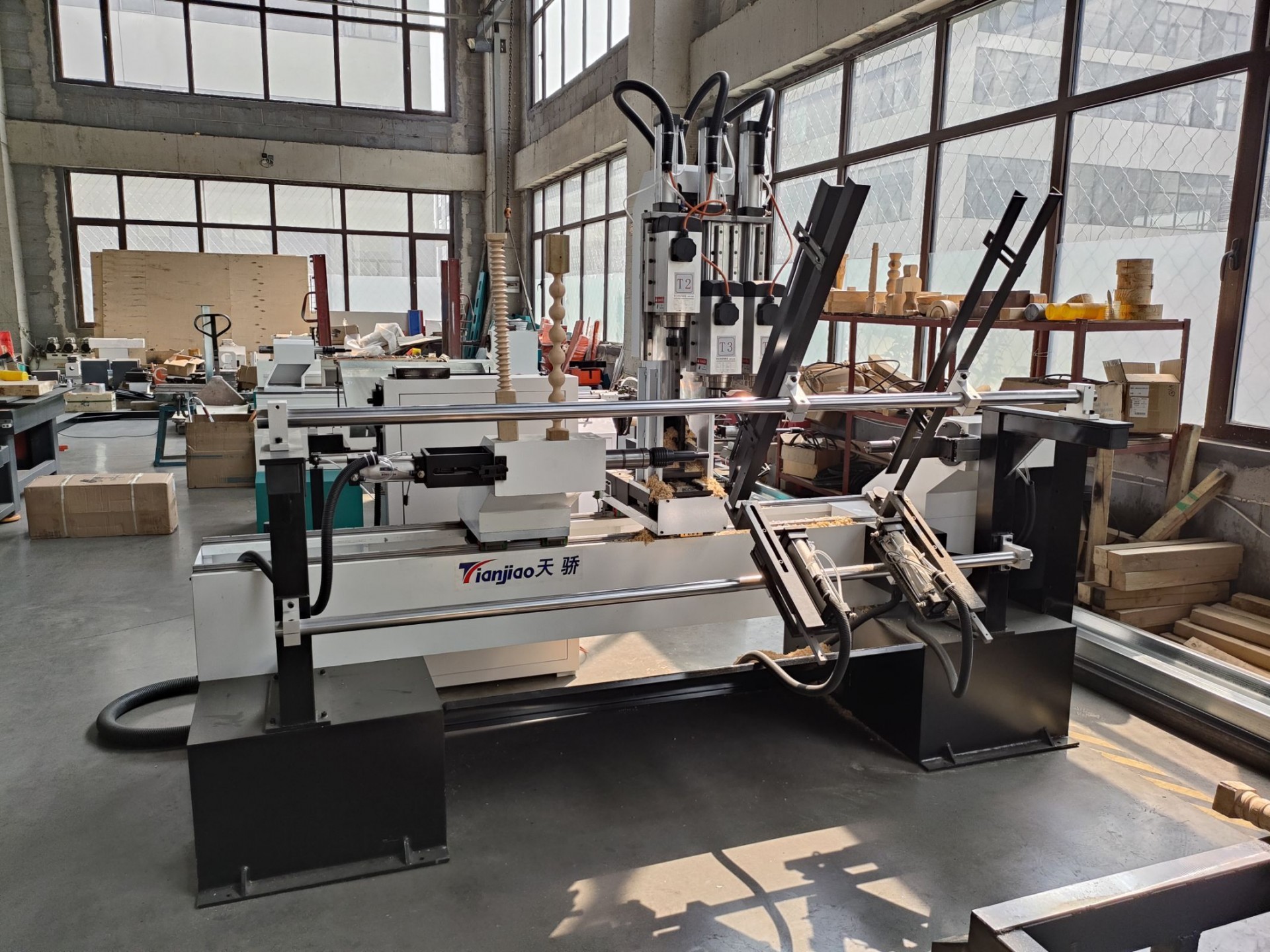

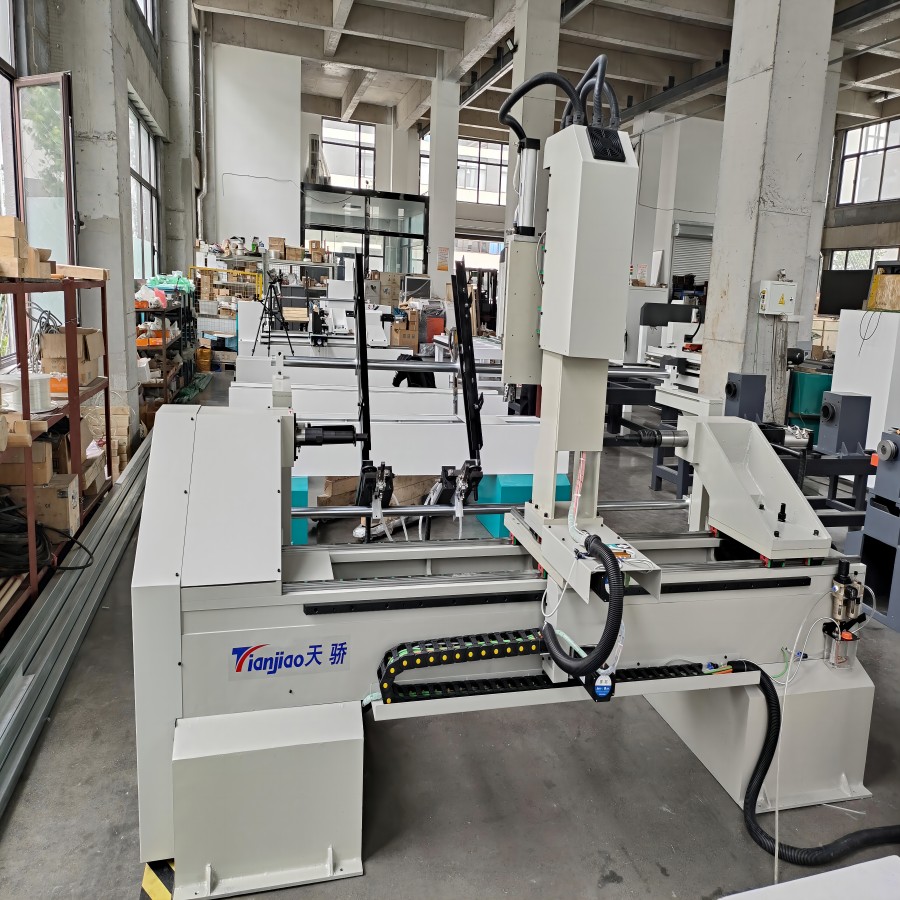

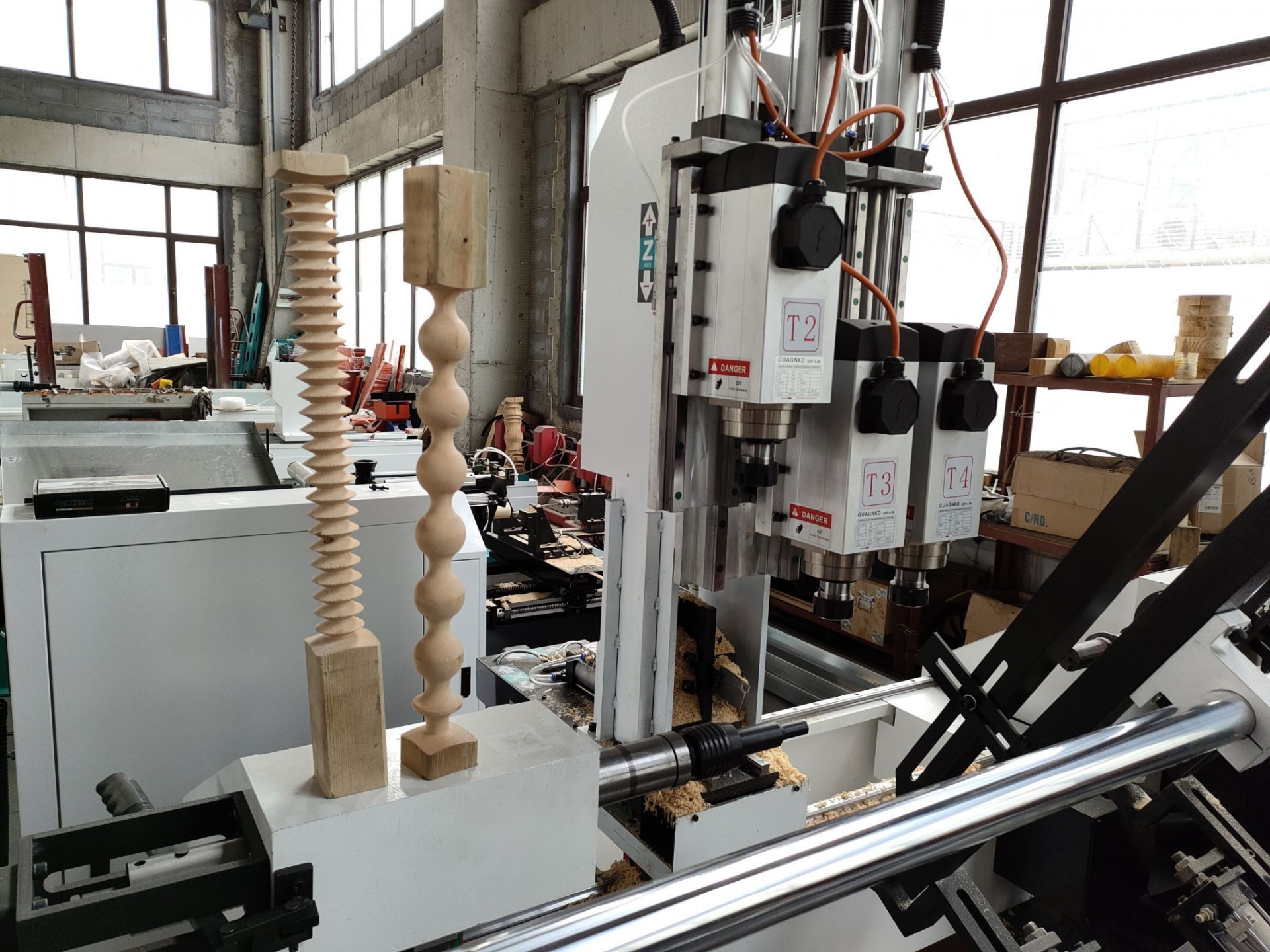

TJ-1220-3A Automatic Feeding CNC Wood Carving Machine for Staircase Balusters

Application:

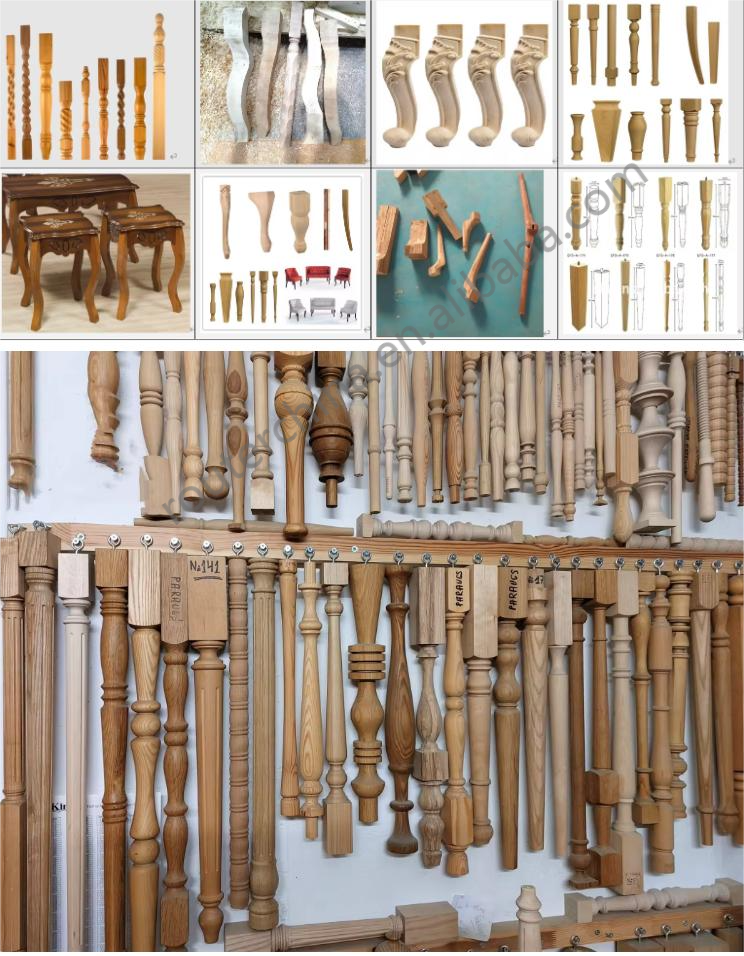

All kinds of wooden staircases,stairway balusters,stairway newel posts;dining table legs;end table Legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails,wooden bowl, lamp posts,baseball bats,wooden plates etc


Model	TJ-1220 -3A
Max processing length	1200mm
Max turning diameter	200mm
Powersupply	AC 380V 3 phase 50HZ/60HZ（can custom 220V）
Turning	1000mm/min
min setting unit	0.01cm
Transimission type	ballscrew for X,Y, Z axis
Guider	Hiwin orbit
Main shaft rotating speed	0-3000r/min

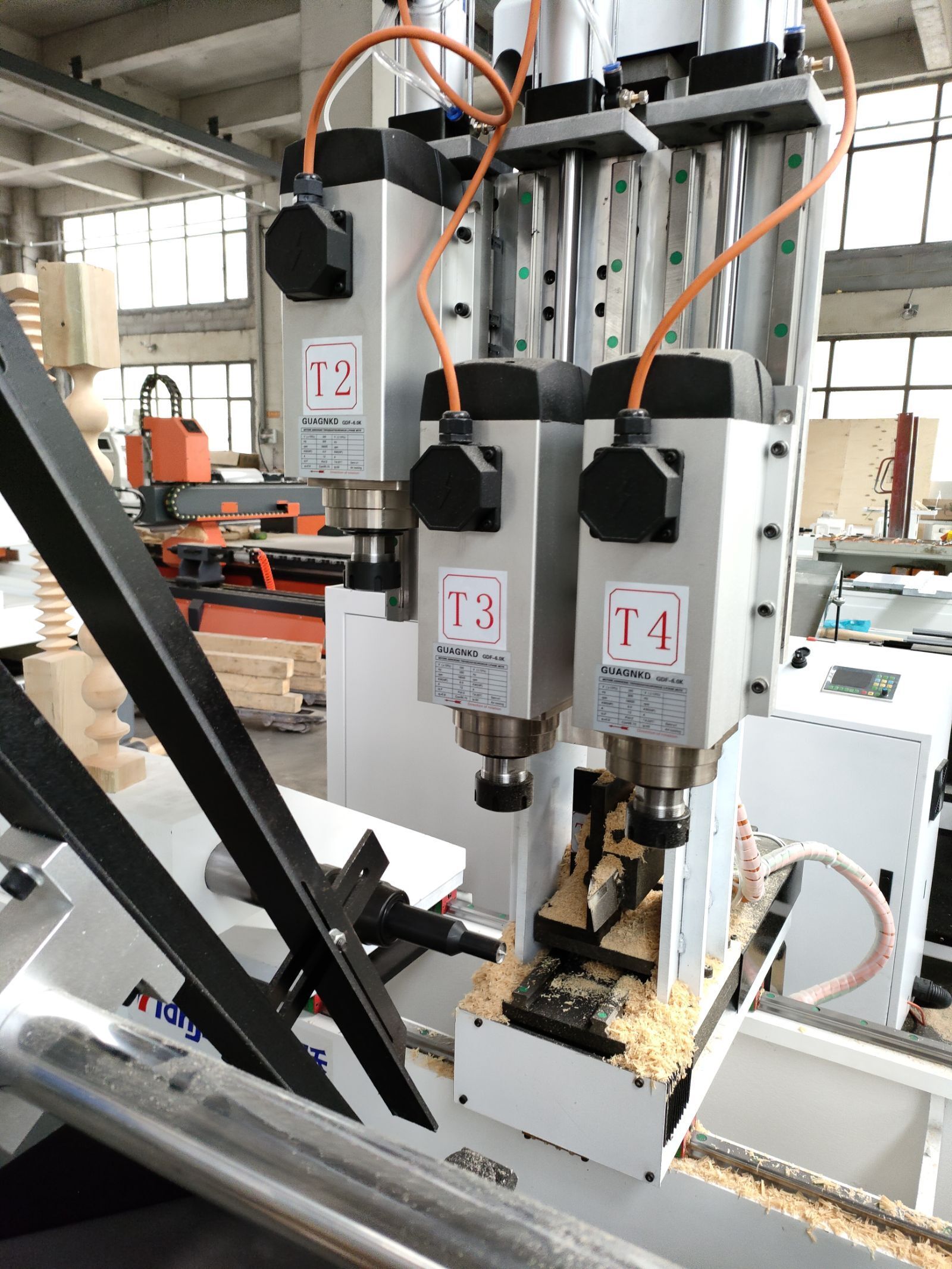

Broaching/engraving motor	6kw
Polishing motor	2.2KW
Milling motor	6KW
Cutter material	Super hard alloy
Control System	GXK CNC control system
Motor	Servo motor
Driver	Servo driver
Inverter	Best inverter
Milling/Polishing	2000mm/min
Broaching	3000mm/min
Engraving	6000mm/min
Drawing Software	Powermill
