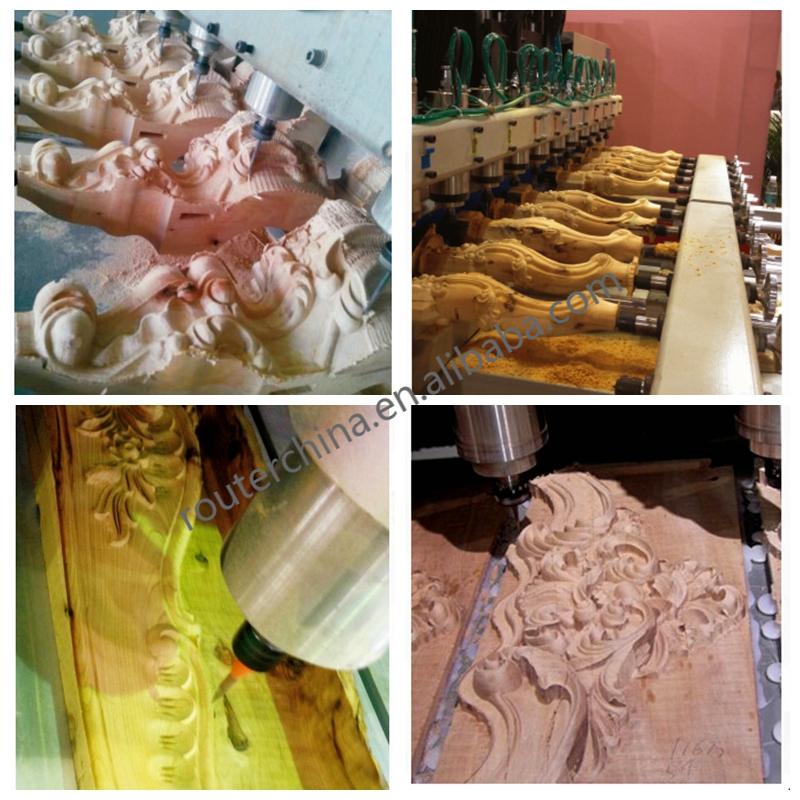

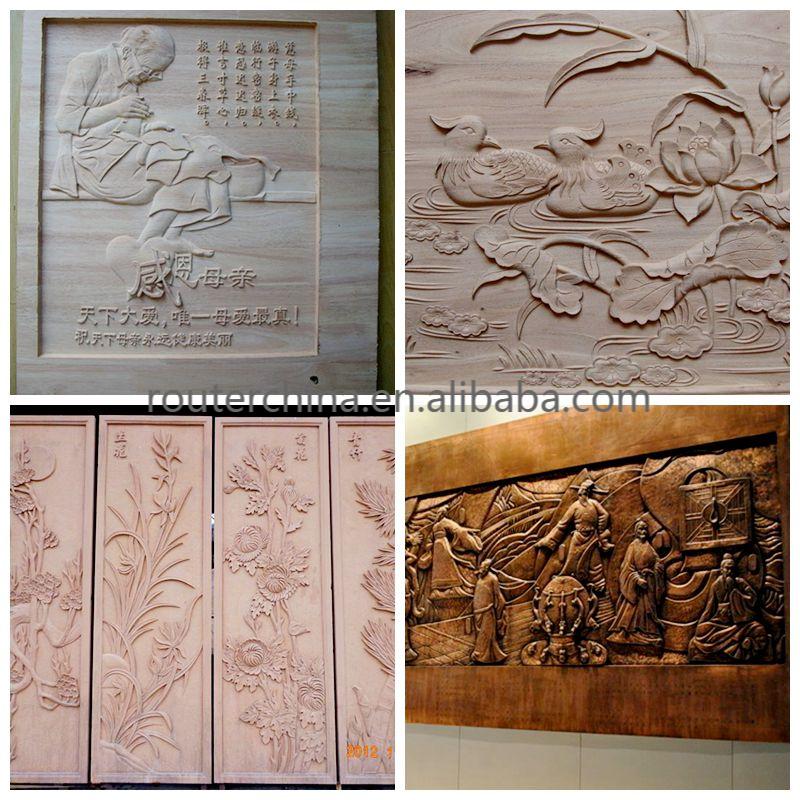

statues, relief medals, organic board reliefs, three-dimensional door heads and so on.
Dimension(mm) | 3100*1850*1650 |
Platform size(mm) | 1300*2500 |
Work area(mm) | 1300*2500*200 |
Travelling speed | 20m/min(MAX) |
Working speed | 12m/min(MAX) |
Working voltage | AC380V(Optional 220V) |

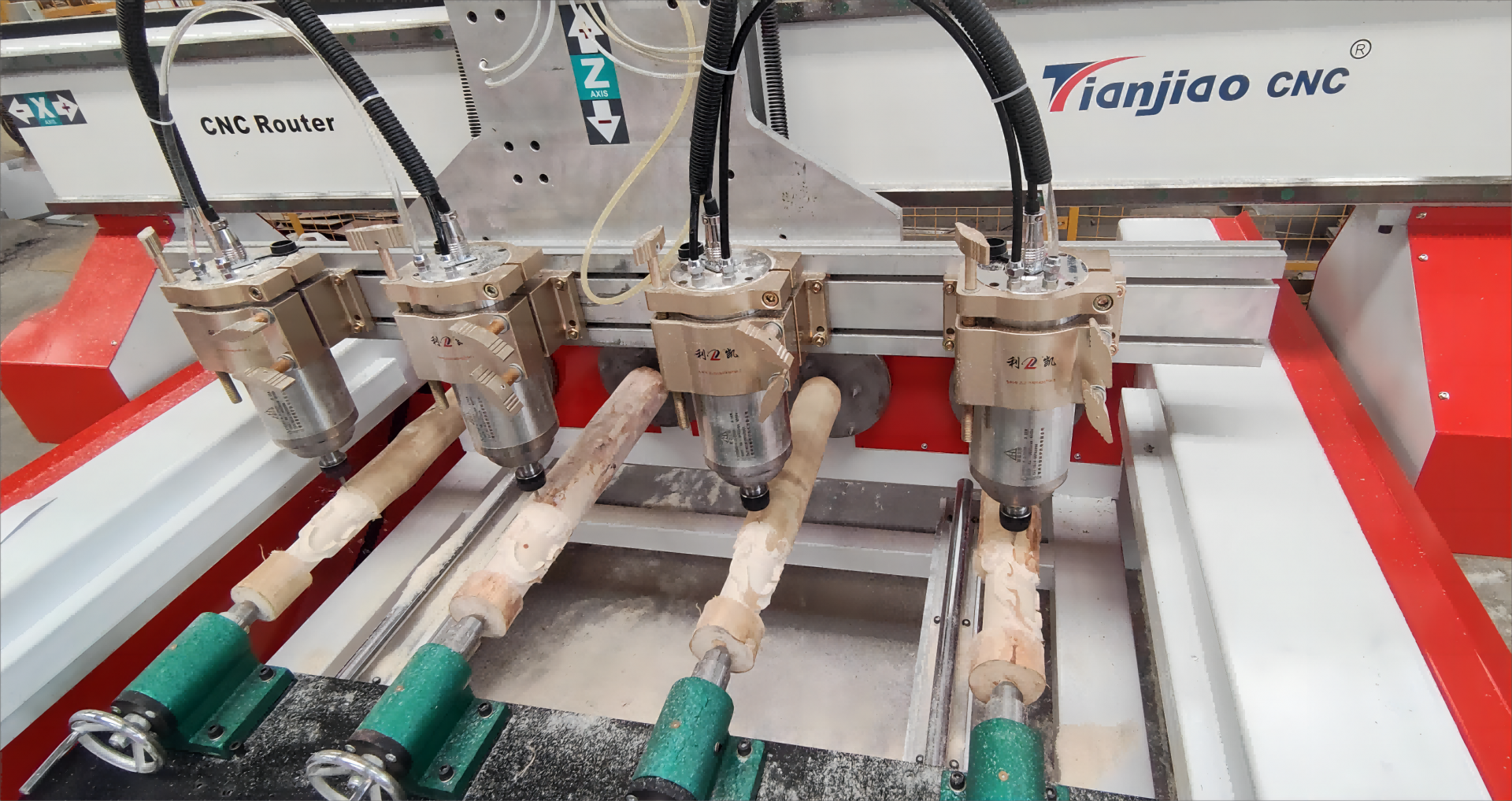

Spindle power | Water cooled 2.2KW*4-24000RPM |
Device architecture | One molding process,space saving cabinet (380V for the normal external cabinet)high structural stability ,high precision and small deformation |
Driving system | XYZ: 86 high torque stepper drive motor and drive |
Lubrication system | Oil pump centralized lubrication control |
Security system | Overtravel protection, electrical protection etc. |
Platform structure | Aluminum profile + fixture |
Electrical accessories | Omron, Chint |
