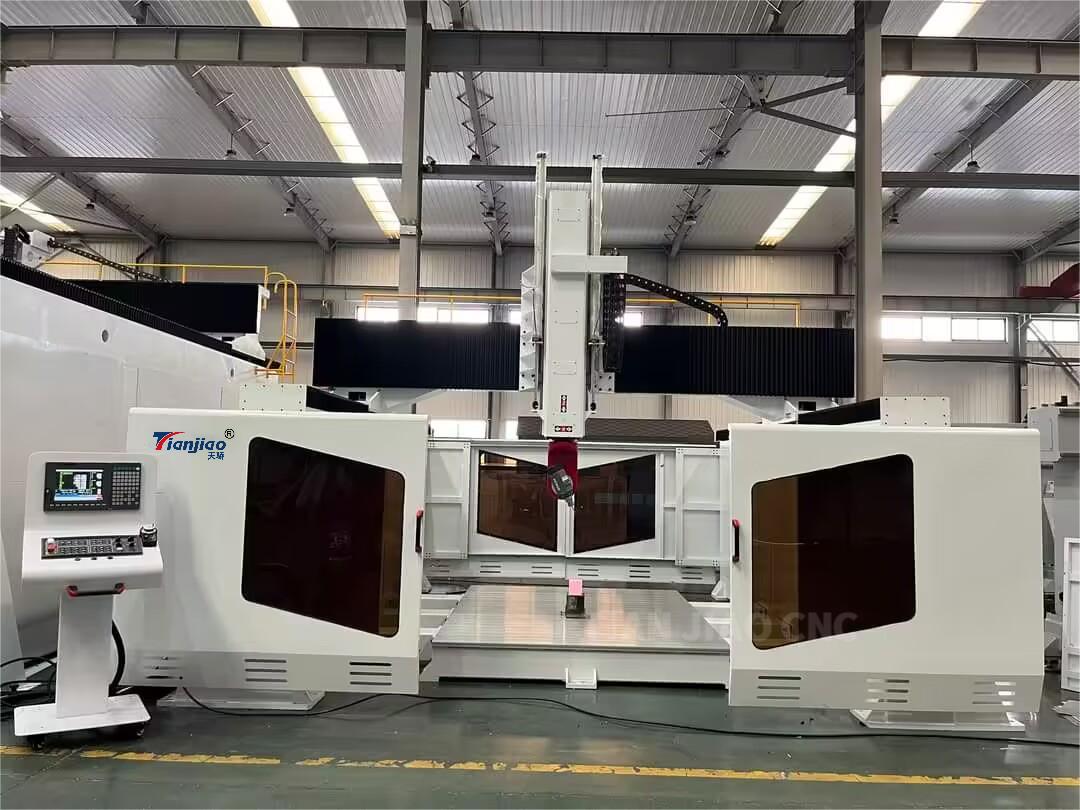

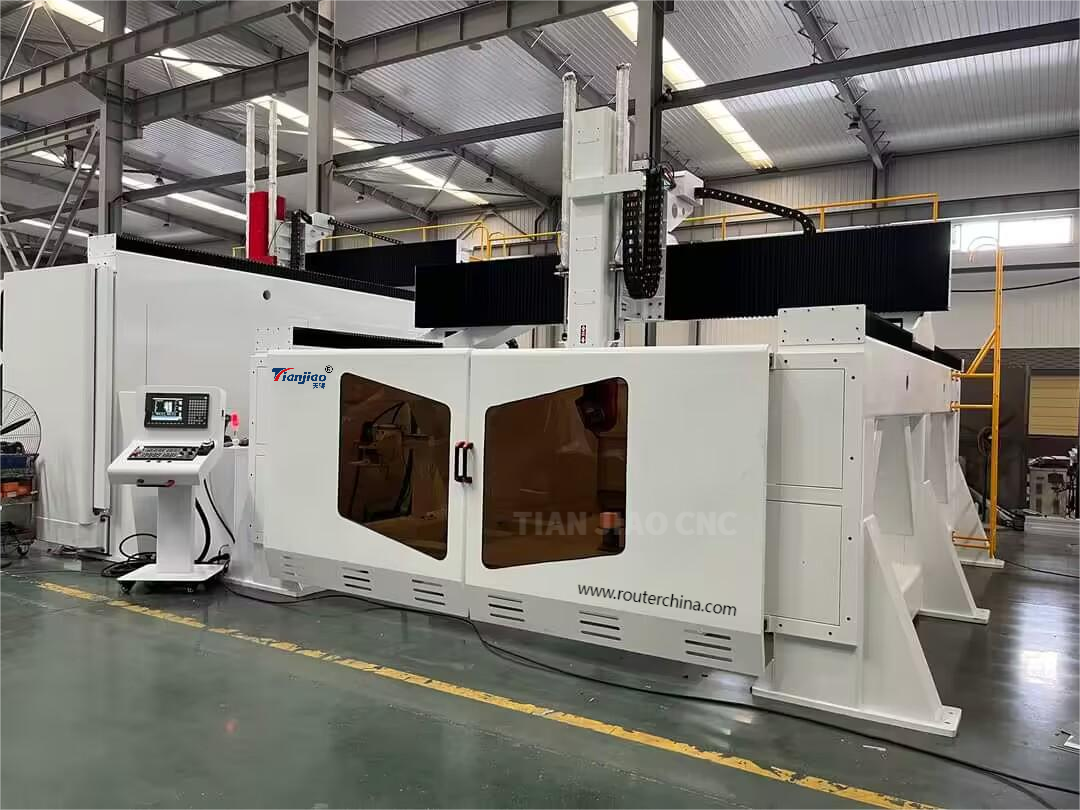

5 aixs cnc foam mold making machine for foam engraving 1530 5 Axis engraving machine

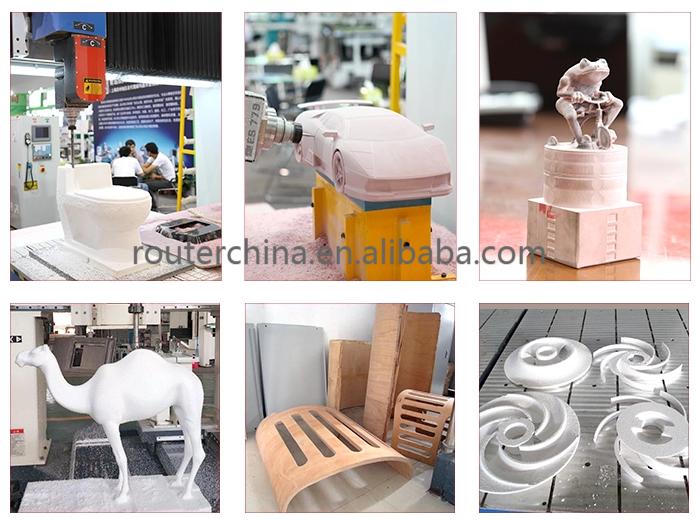

Applied materials:

Sculpture various large non-metallic mold can be particularly suitable for any kind of wood, resins, wooden pattern model, wooden model aviation and other wooden mould.


X,Y,Z working area
1500*3000*1000mm
Spindle
9kw HQD spindle, 1000-24000rpm
Motor
GUANG SHU(GSK) /Taiwan Syntec/Japan Yaskwa servo motor
Moving mode
Table moving
C travelling
0-360°
A travelling
0-210°
product fixed form
Professional T-slot
X, Y, Z Travelling Potioning Accuracy
±0.03/300mm
X, Y, Z Travelling Repositioning Accuracy
±0.05mm
Frame
Cast steel
X, Y structure
rack and pinion drive,
Max Rapid Travel Rate
45,000mm/min
Max working speed
30,000mm/min
Z Axis
20m/min
c Axis
20m/min
A Axis
20m/min
Total Power(kw)
24KW
Maximum lifting weights
20T
Working voltage
AC 3~380V/50HZ ±10%
Command languages
G code,F/S
Control system
GUANG SHU (GSK)/Taiwan Systec
Collet
BT40
