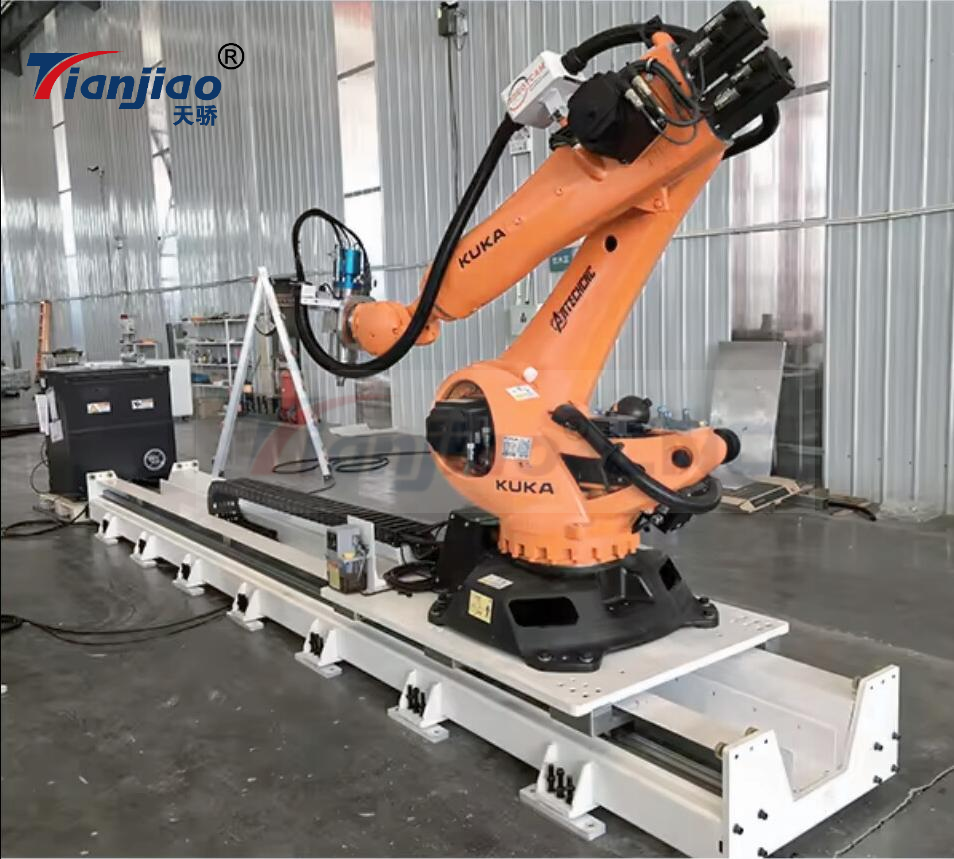

5 6 7 axis cnc robot arm Automatic 3D Sculpture Mold Milling Machine

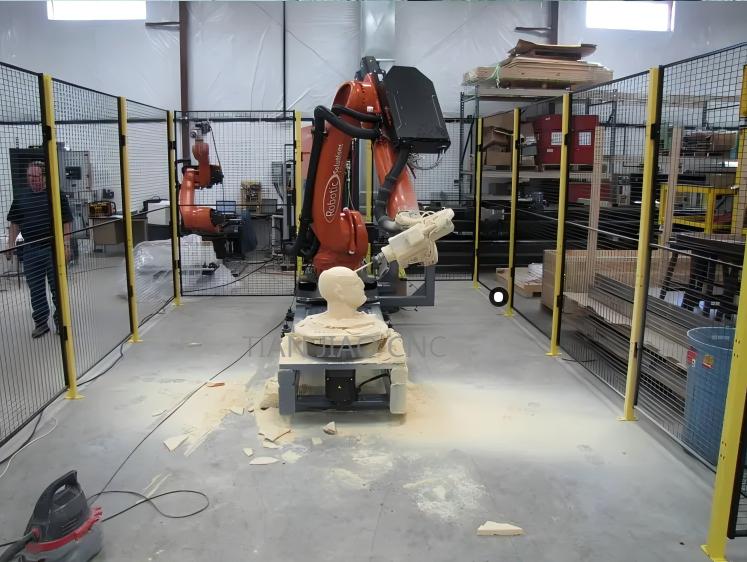

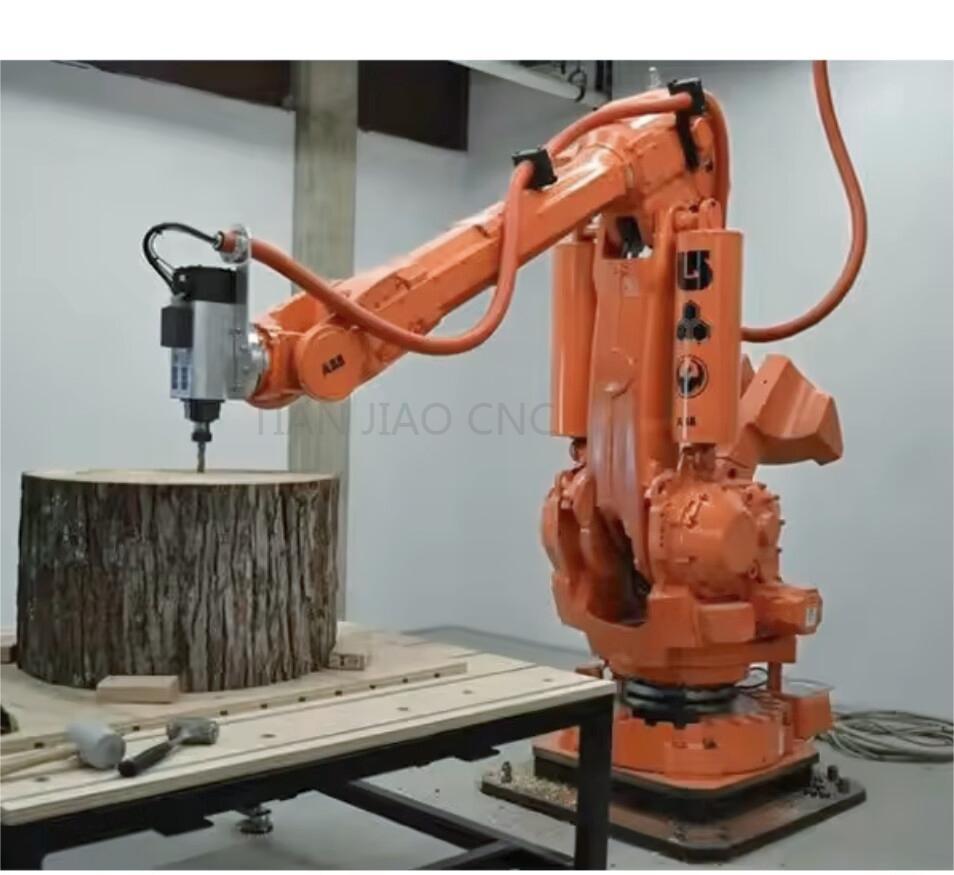

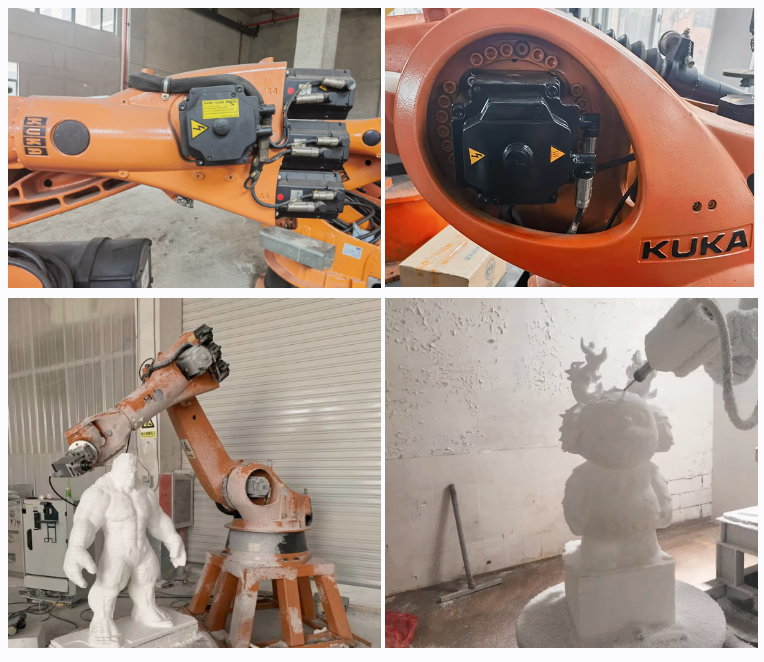

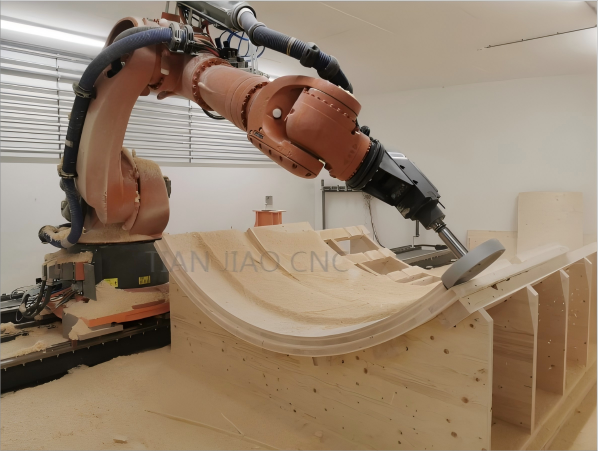

This system is suitable for engraving work of various batches of workpieces in industrial production, suitable for cutting, grinding, drilling and other processing of workpieces, and product modeling of wood, stone, aluminum alloy and composite materials. Coordinate the movement with the turning position machine, integrate the USP port, and use the offline programming system to perform complex workpiece processing.



Motion axis
6
Pose repeatability (ISO 9283)
± 0.05 mm
Maximum reach
2700mm/3100
Protecton ratng (IEC 60529)
IP65
Protection ratng, in-line wrist (IEC 60529)
IP65/IP67
Sound level
< 75 dB (A)
Footprint
754 mm x 754 mm
Hole patern: mountng surface for kinematc
system
S780
Permissible angle of inclinaton
≤ 5 °
Flange (on the 6th axis)
DIN ISO 9409-1-A50
Controller
KRC4
Transformaton name
KR C4: KR210R2700_2 C4 FLR
During operaton
0 °C to 55 °C (273 K to 328 K)
During storage/transportaton
-40 °C to 60 °C (233 K to 333 K)
Installation position
On the ground
CPU and main board
KUKA
