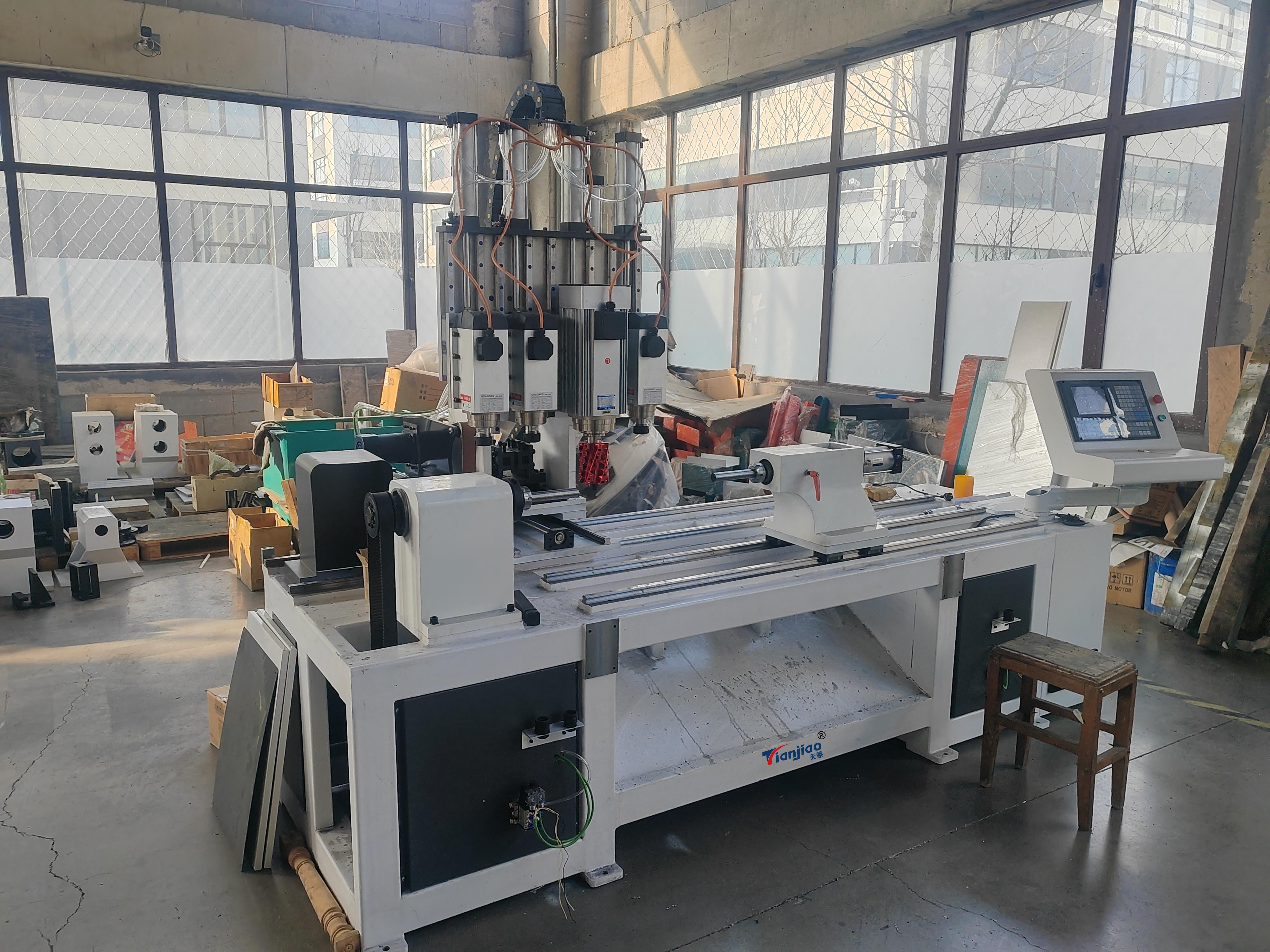

Multi-functional CNC lathe

High Speed Automatic Feeding Remax CNC Wood Turning Lathe Machine is a set of equipment that can craft items such as stair posts, Polishing Bench, Coffee Cup, wooden designs, and more. CNC wood lathes are operated by a user-controlled computer. Using a computer on a lathe offers a wide range of benefits and capabilities while improving functionality. Automatic feeding system can directly process square wood, round wood etc.

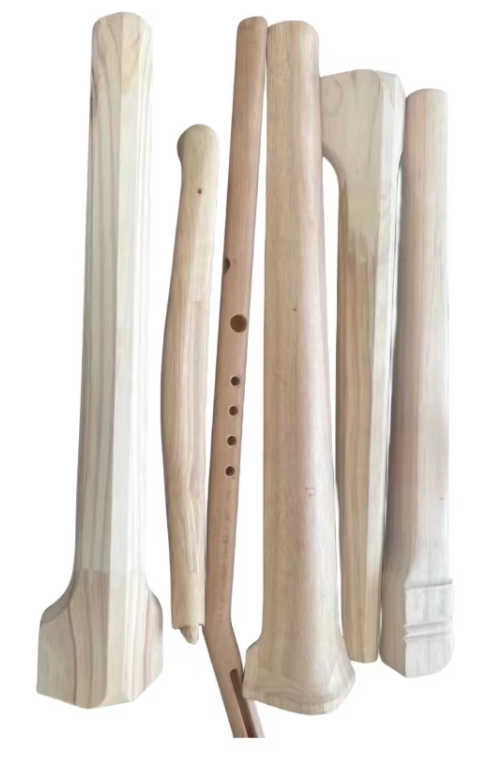

suitable for processing: front and rear legs of horn chairs, octagonal chair legs, copper set legs, dining table legs, turning, milling and drilling in one go.

Form	Branding
Control System	Turning and milling complex special system
X-axis Screw	Taiwan TBI 2510
Z-axis Screw	Taiwan TBI 2510
Y-axis Screw	Taiwan TBI 2510
X-axis Drive Type	Inwitten servo 1.5KW4 twisted meters
Z-axis Drive Type	Inwitten servo 1.5KW4 twisted meters
Y-axis Drive Type	Inwitten servo 1.5KW4 twisted meters
X-axis Guides	Ding-Han Taiwan 25
Z-axis Guides	Ding-Han Taiwan 25
Y-axis Guide	Ding-Han Taiwan 25

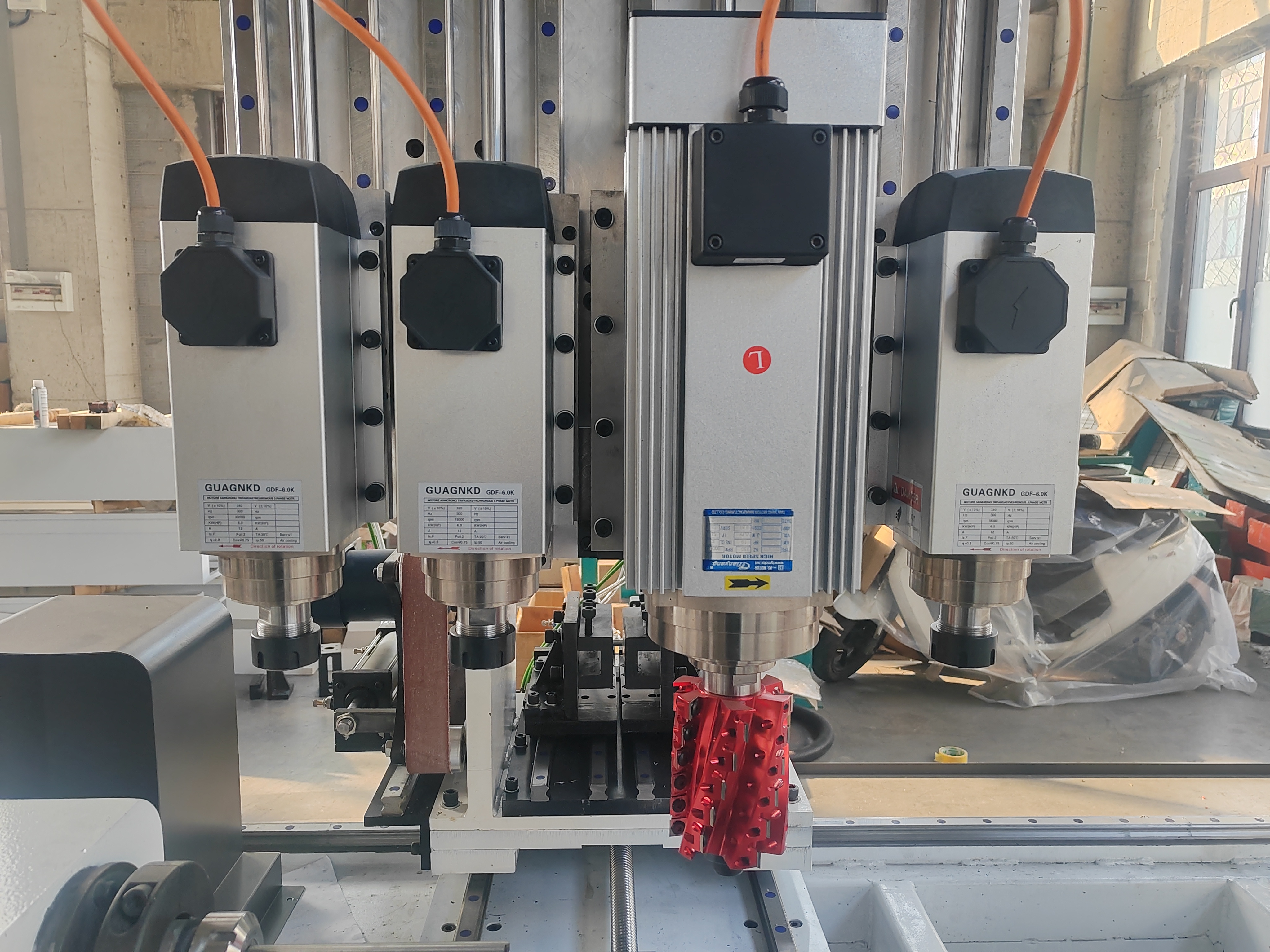

T3 milling	6KW Air cooling spindle 18000 RPM
T4 milling	6KW Air cooling spindle 18000 RPM
T5 Slotting	6KW Air cooling spindle 18000 RPM
T 6 milling profile (Reversing)	7.5KW Planer spindle 1200 RPM
Maximum cutting length	1000MM
Maximum cutting diameter	120MM

Multi-functional CNC lathe

Jinan Tianjiao Machinery Manufacture Co., Ltd.
