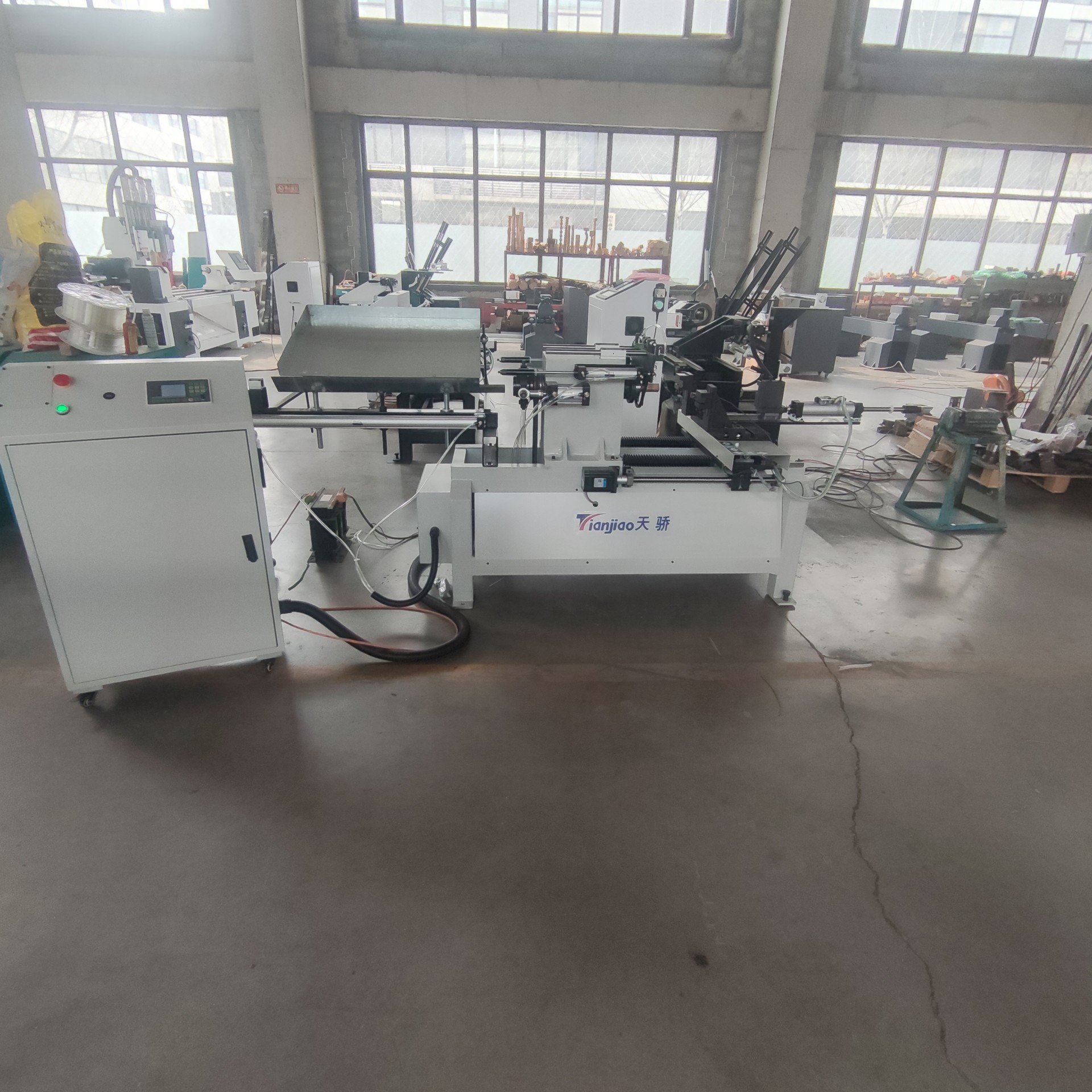

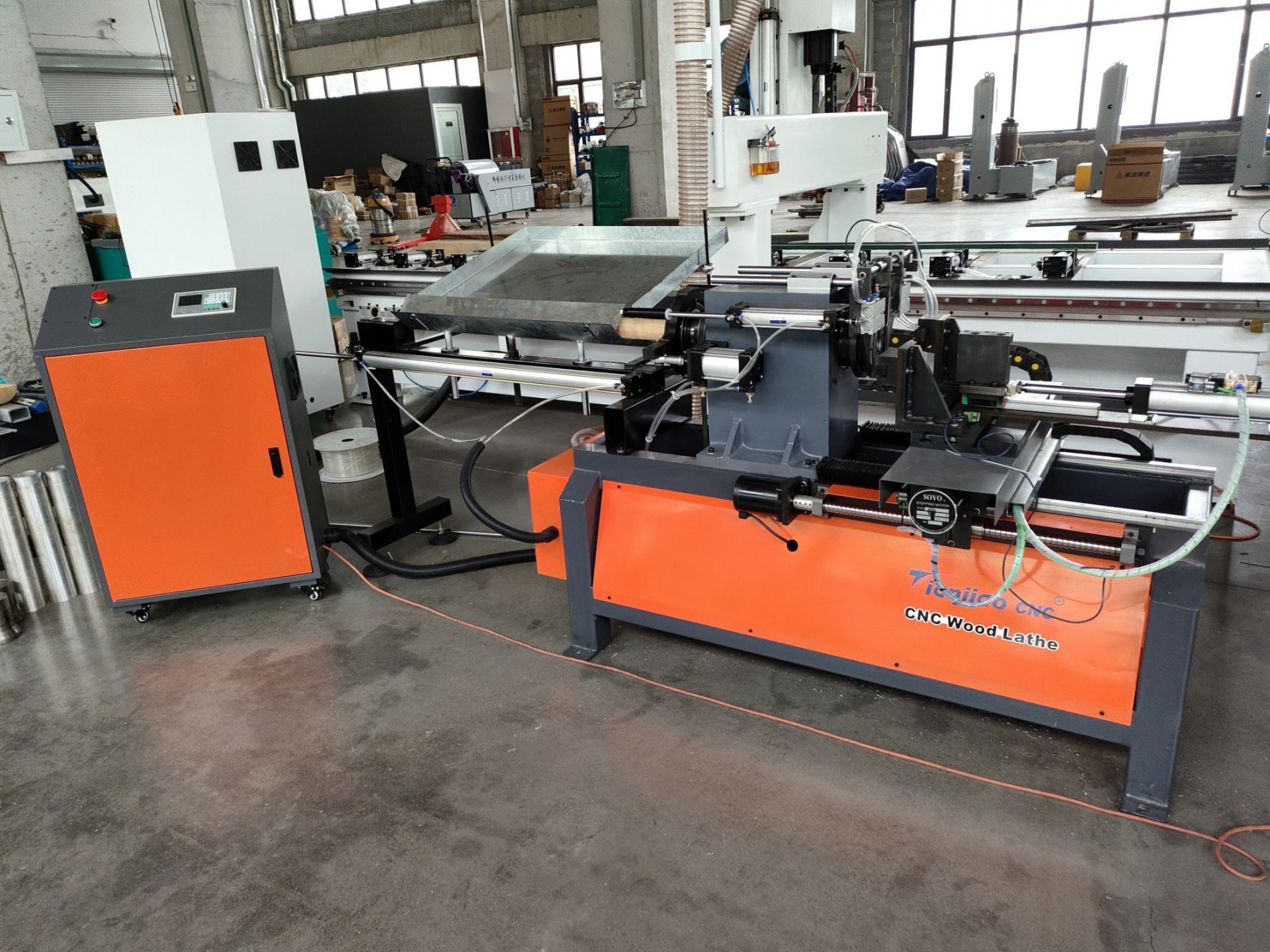

Mini Automatic CNC Wood Turning Lathe

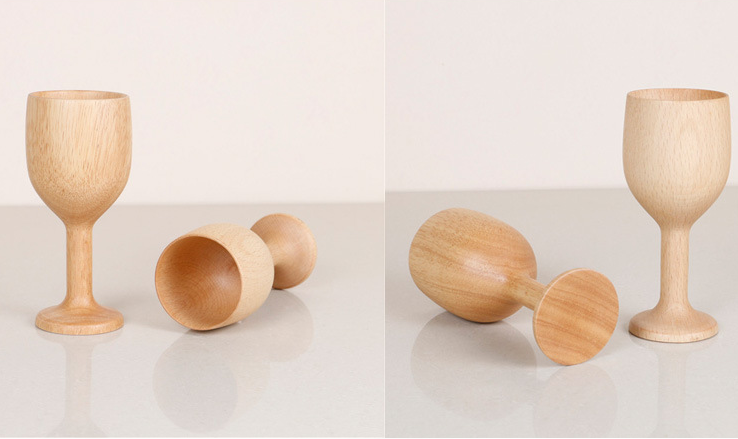

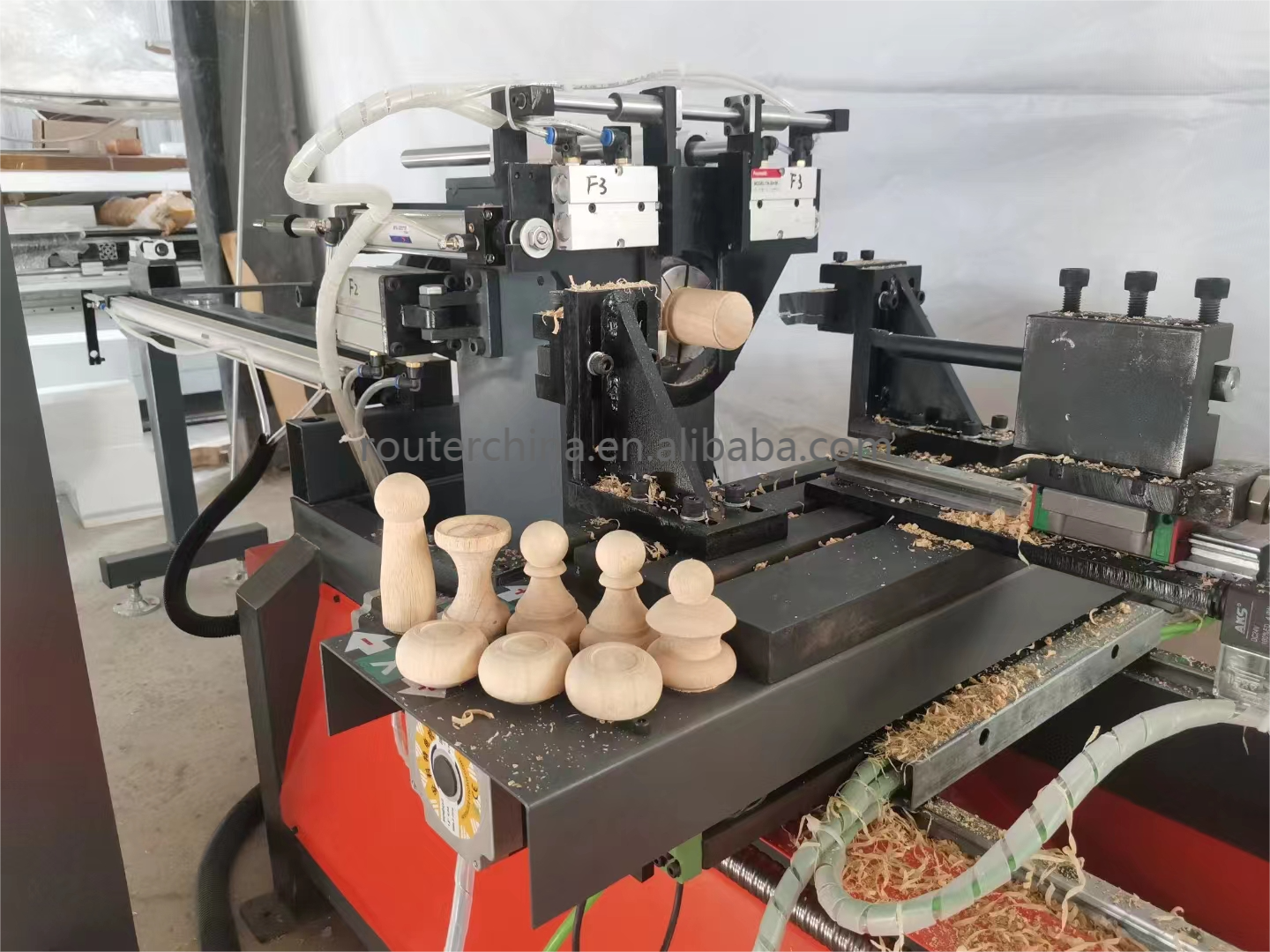

Automatic feeding CNC woodworking lathe, can turn, drilling, is the best choice for small round handle crafts processing factory, can process large version of chess, small bowls, wine glasses, Musical Instruments, furniture accessories  and other CNC processing


Machine frame
Thick-walled square pipe welded cast iron headstock
guide
Taiwan 20 guide rail Taiwan 2510 lead screw
A rotary motor
1.5 KW three-phase asynchronous motor with lock
Driver motor
Strictly control 2D68 drive 450B motor
The inverter
2.2kW power supply inverter
Conveying mechanism
Automatic feed of round wood
The controller
G code offline controller (custom system) with automatic G code generation software
rest
1. External round knife 2. Internal hole knife 3.Cutting knife
Processing size
The maximum length of processing material is 150mm
model
Diameter 80 through hole /60 through hole
